Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
1 / 5
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System
Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System

Factory Supply Automatic Revolving Door Hotel Entrance Door Waterproof Security Rotating Door System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
automatic revolving door
Open Style
Power Driven
Position
Commercial
Material
Aluminum
Certification
CE, ISO9001
Motor
Made in Germany
Voltage
AC220/50Hz
Glass Type
Tempered
Capacity
20 Sets/Month
Package Size
260cm * 120cm * 150cm
Product Description

Two-wing Automatic Revolving Door is the perfect solution for keeping dust, noise, rain, sleet and snow from entering buildings, ensuring energy efficiency and environmental protection. In sliding door mode, it provides a capacious and comfortable passage for large crowd traffic flows.

This system is the ideal choice for the main entrance of grand commercial buildings such as hotels, office complexes, shopping malls, and exhibition centers, offering a noble appearance, stable operation, and safety.

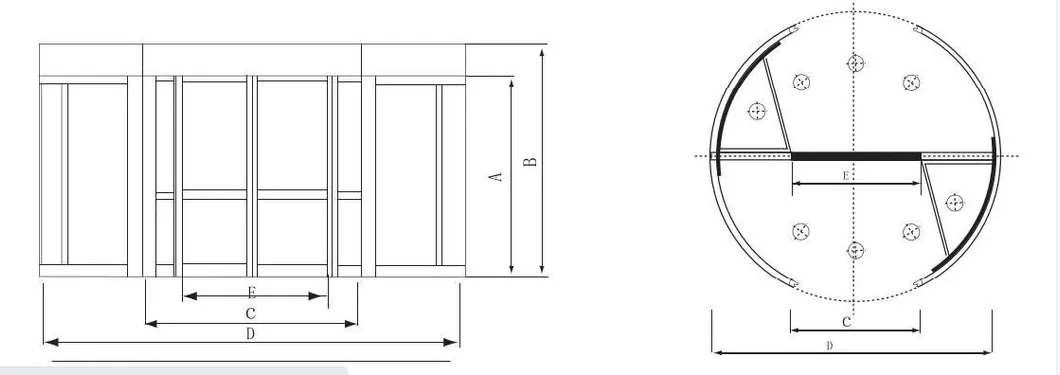

Automatic Revolving Door Door System Layout
Technical Dimensions (mm)
Outer Diameter Inner Diameter Passage Height Canopy Height Total Height Entrance Width
300028102300-3300300-6002400-40001328
340032101528
380036101728
420040101928
480046102228
Advantages & Features
Aluminum alloy die-casting molding frame
Anti-squeeze and anti-strike safety functions
Slow speed mode for disabled and elderly
Energy saving and noise insulation
Digital program control system
Fire Alarm integration
Multiple operation modes (Revolving/Sliding)
Weather-resistant canopy sealing

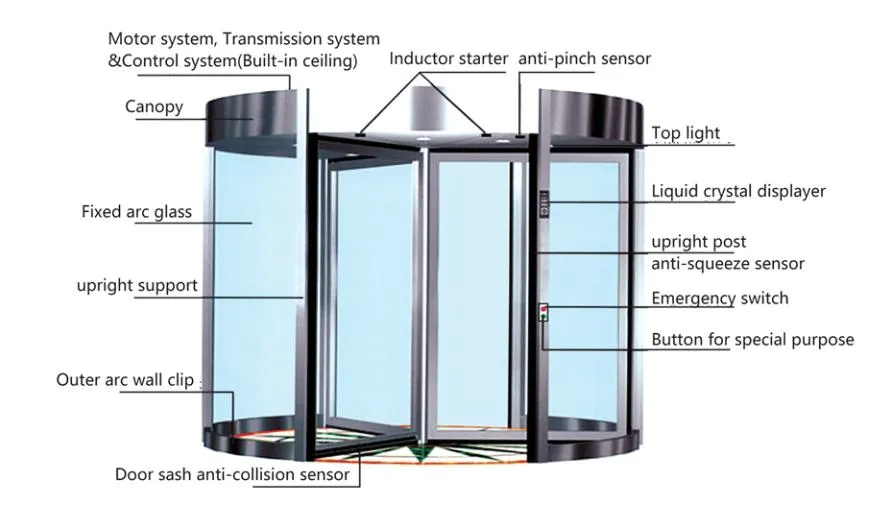

Technical Features
Technical Data Summary
Power
220V/50Hz; Motor 370W*2
Drive Unit
550W
Speed Range
High: 3-4 r.p.m / Low: 0.5-1.5 r.p.m
Aluminum
Thickness ≥3mm
System
Japanese Panasonic Digital LCD
Frequently Asked Questions
Q1: What are the main operation modes for the two-wing revolving door?
It supports both automatic revolving mode and an integrated automatic sliding door mode for high traffic volume.
Q2: How does the door ensure safety for children and the elderly?
The door includes a "Disable Button" that slows down the rotation speed for one full round and features anti-squeeze/anti-strike sensors.
Q3: Is the door weather-proof for outdoor installation?
Yes, the canopy is designed with plywood or metal plates and sealed specifically for dustproofing and shower-proofing.
Q4: What surface finishes are available?
Available finishes include hair-line stainless steel, mirror stainless steel, fluorocarbon spraying aluminum, and anodic oxidation.
Q5: What happens in case of a fire alarm?
The system includes a fire alarm interface that integrates with building safety systems to ensure emergency egress.
Q6: What is the typical production capacity?
The current production capacity is approximately 20 sets per month.
