Basic Information
Application

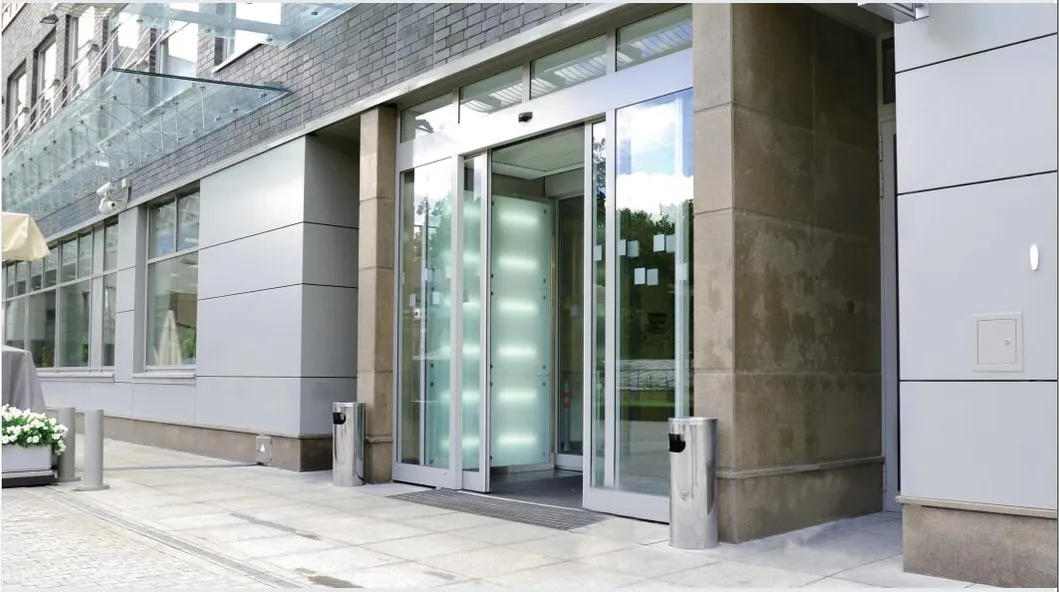

Commercial Entrance
Product Description

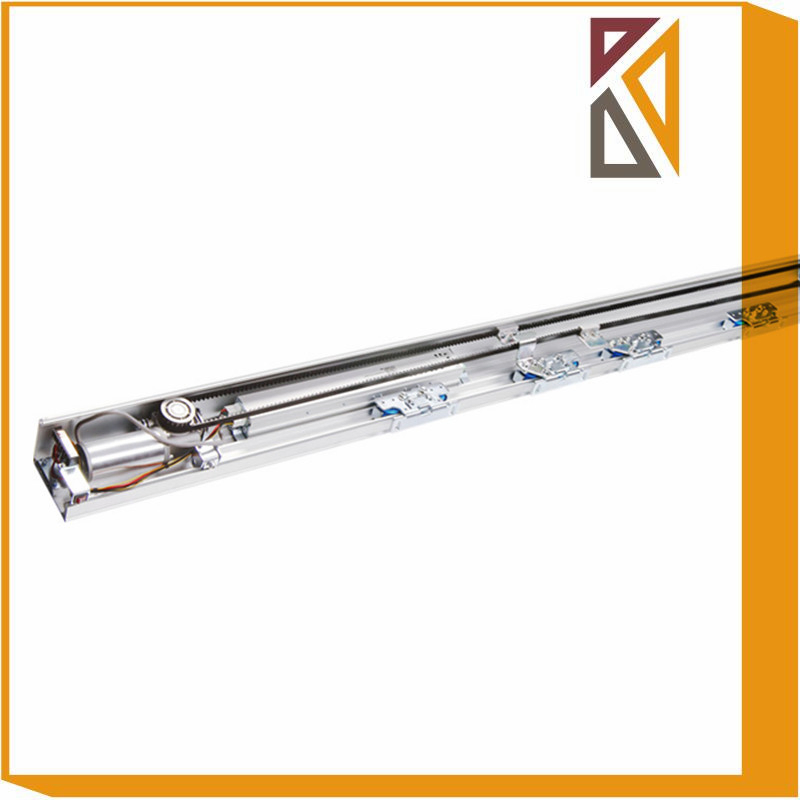

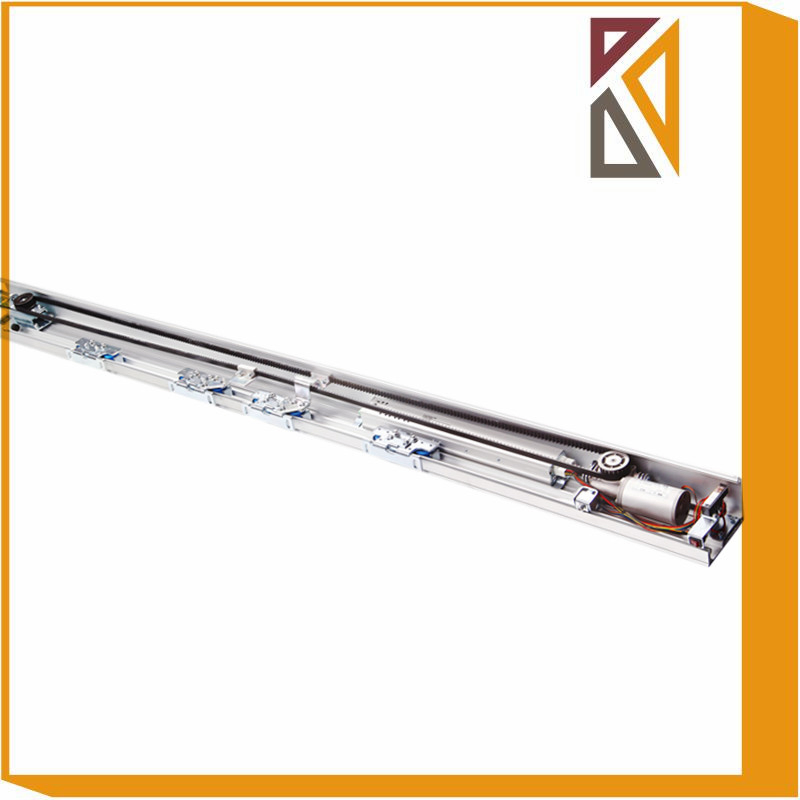

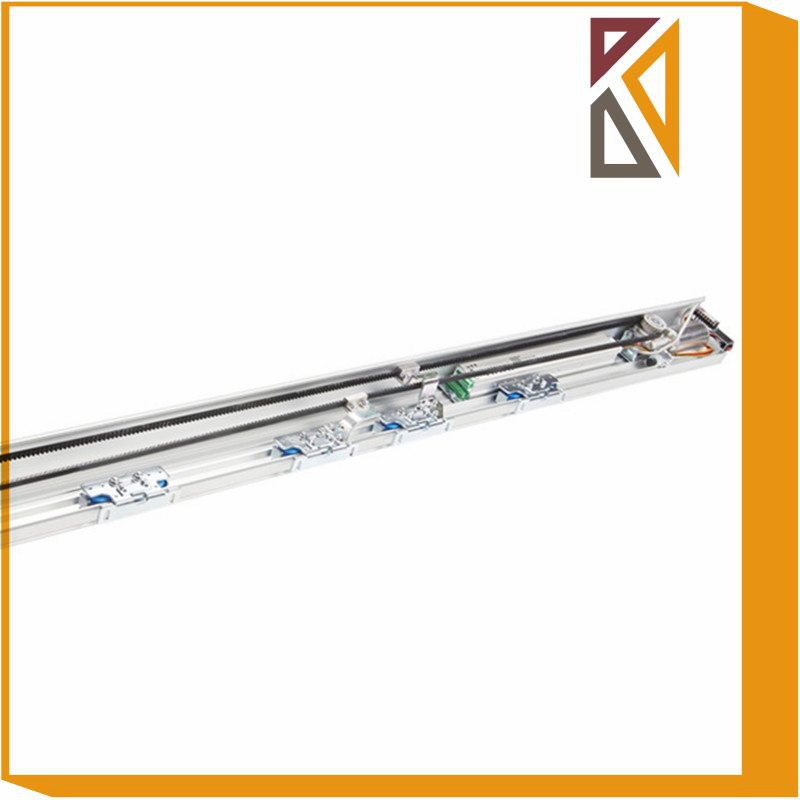

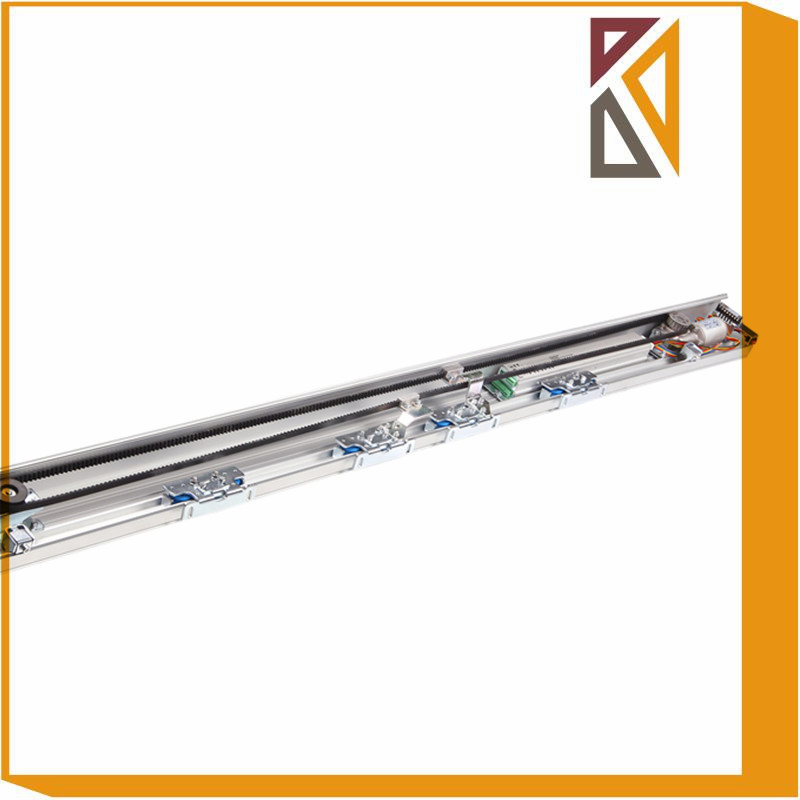

KA-120 electric sliding glass door automation for sliding pedestrian doors, hold max 120Kg, designed for normal use for interior and exterior place and is the hot sales in market all the time. Through these years improvement, its technology and quality is very mature.

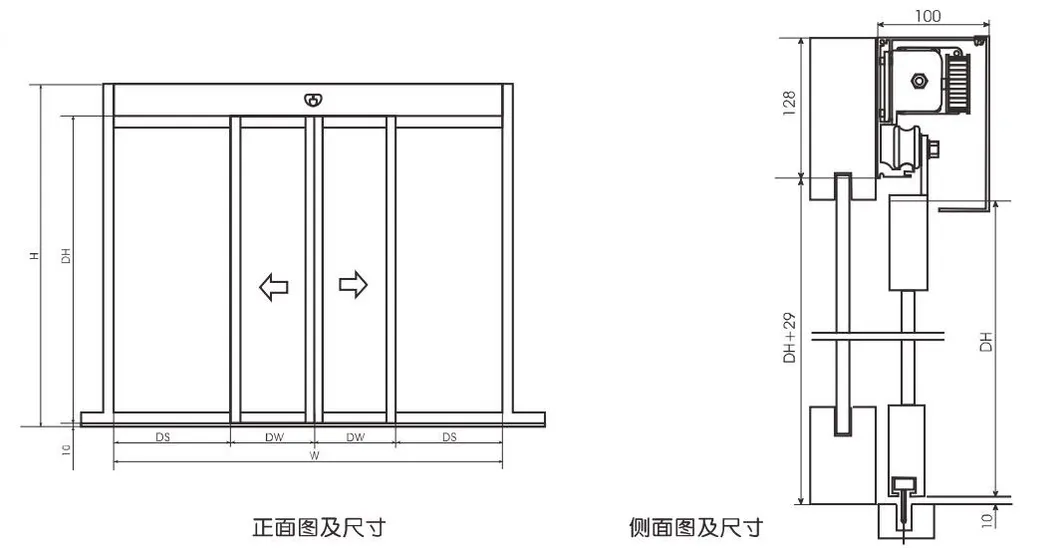

Sectional View
Height 125mm, Depth 100mm track. Its design is very simple and easy to install.

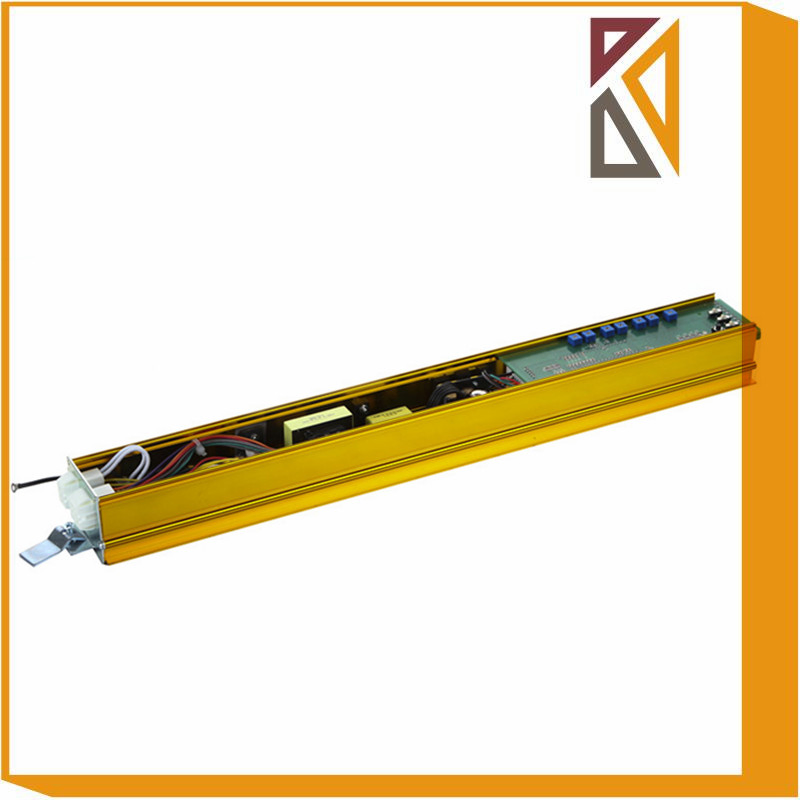

Microcontroller Features
| Microprocessor controller | Yes |
| Program modes | Off, Automatic, Permanent open, Partial opening, Exit only |
| Safety Functions | Emergency open, Self-learning, Automatic reverse |
| Connections | Electro-mechanical locking, Light barriers |
| Adjustable Parameters | Speed, Open time, Initiate force, etc. |
| Output | 24V/12V for external consumption |
Technical Data
| Parameter |
Single Door |
Bi-Parting Door |
| Door Width | 700mm - 1300mm | 600mm - 1250mm |
| Door Weight | ≤ 120kg | ≤ 100kg x 2 |
| Opening Speed | 15-50cm/s (adjustable) | 15-45cm/s (adjustable) |
| Hold on Time | 0 - 20s (adjustable) |
| Profile Size | 4200mm(L) x 150mm(H) x 78mm(W) |
Frequently Asked Questions
What is the maximum weight capacity for the KA120 model?
The KA120 system can handle a maximum weight of 120kg for a single door or 100kg x 2 for bi-parting door configurations.
Can the opening and closing speeds be adjusted?
Yes, both opening and closing speeds are fully adjustable, ranging from 10cm/s to 50cm/s depending on the configuration.
What type of motor is used in this automatic door system?
The system utilizes a high-quality 24V, 60W Brushless Motor for quiet and efficient operation.
Does the system support emergency operations?
Yes, it features an emergency stop function and can be equipped with a battery pack for emergency opening or closing during power failures.
Where is this automatic door system typically applied?
It is ideal for commercial entrances such as hotels, banks, airports, supermarkets, and high-end retail shops.
Is the system compatible with different power supplies?
The KA120 is designed to work with wide voltage ranges, supporting both 110V and 220V power supplies.
