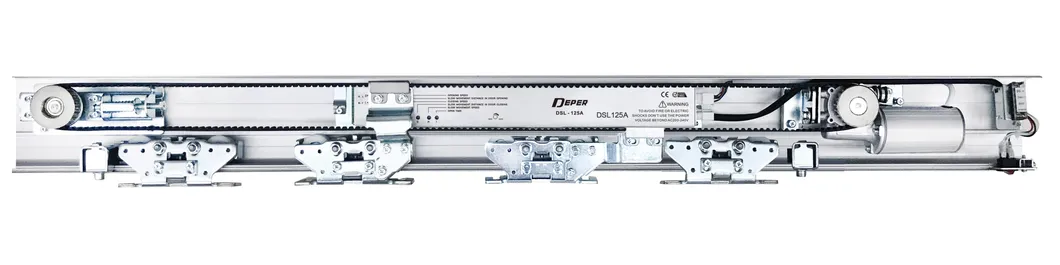

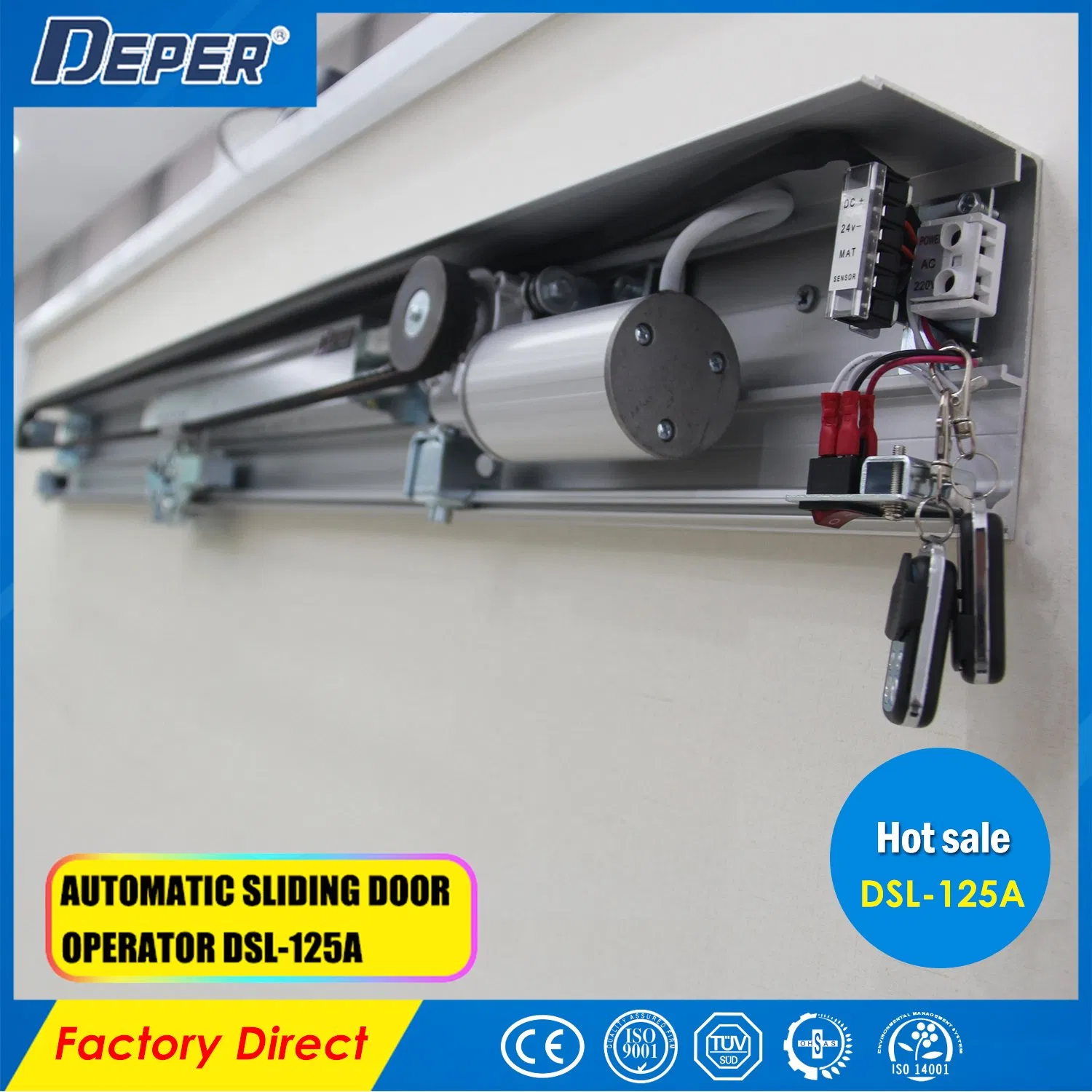

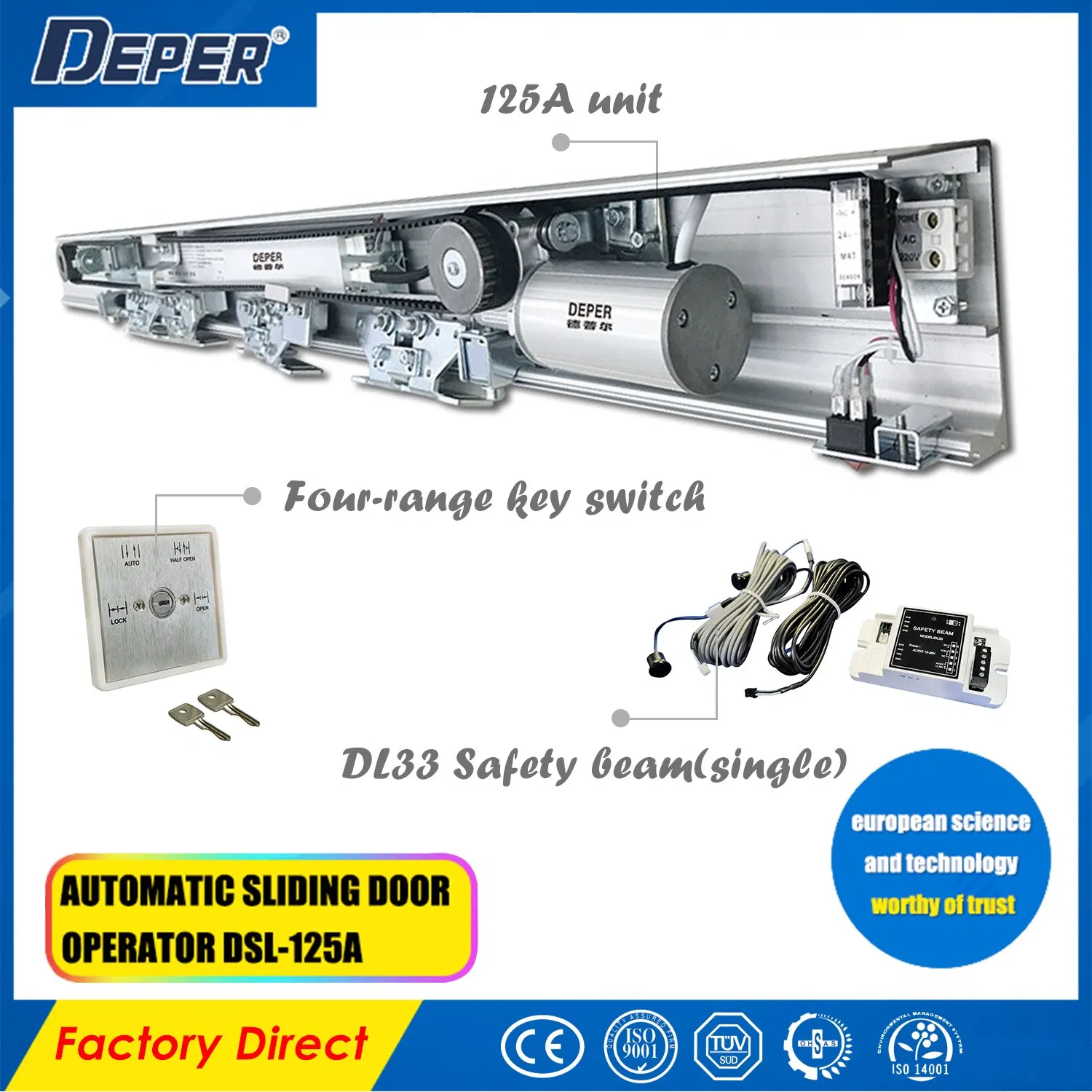

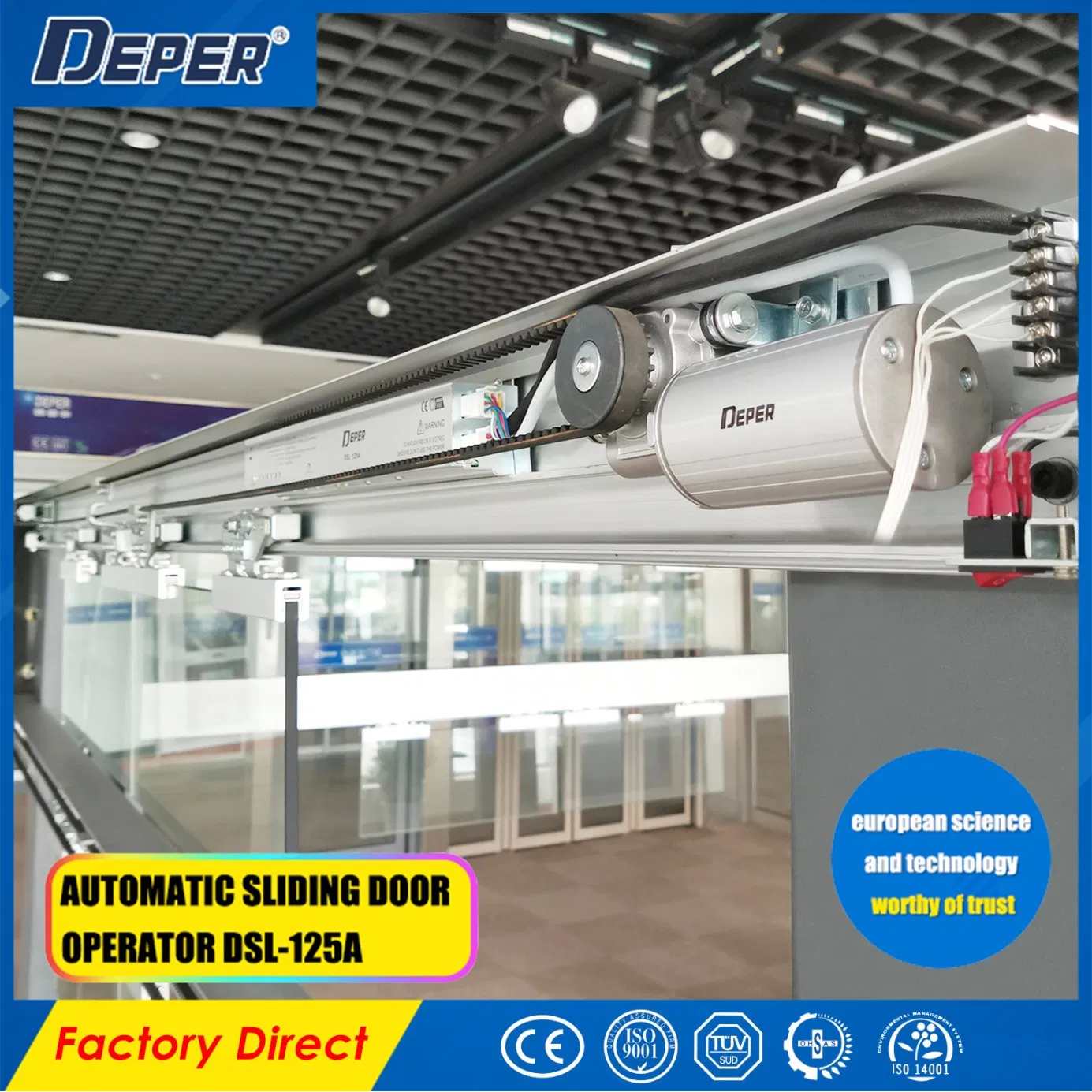

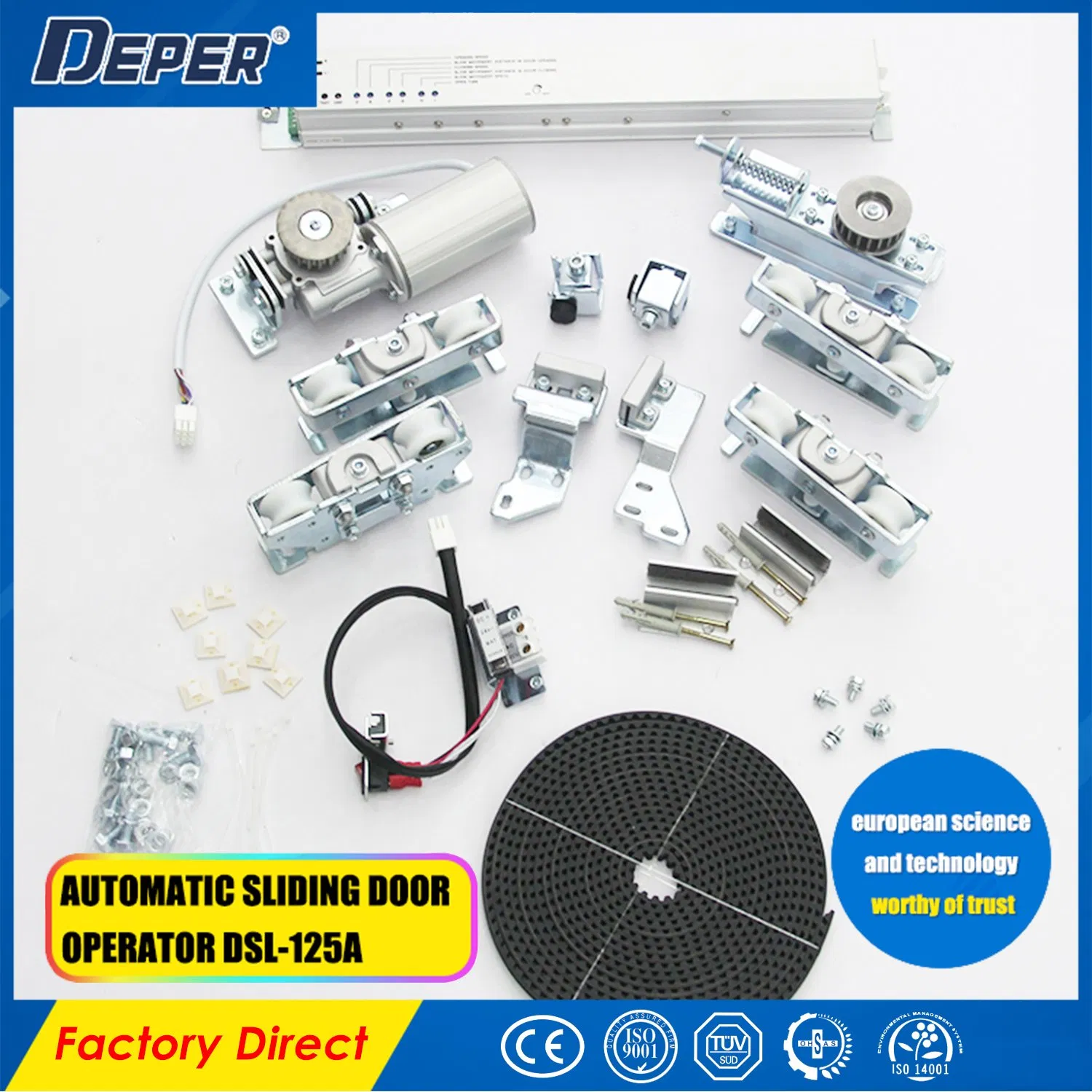

Main Entrance Commercial Glass Sensor Door Automatic Sliding Door System

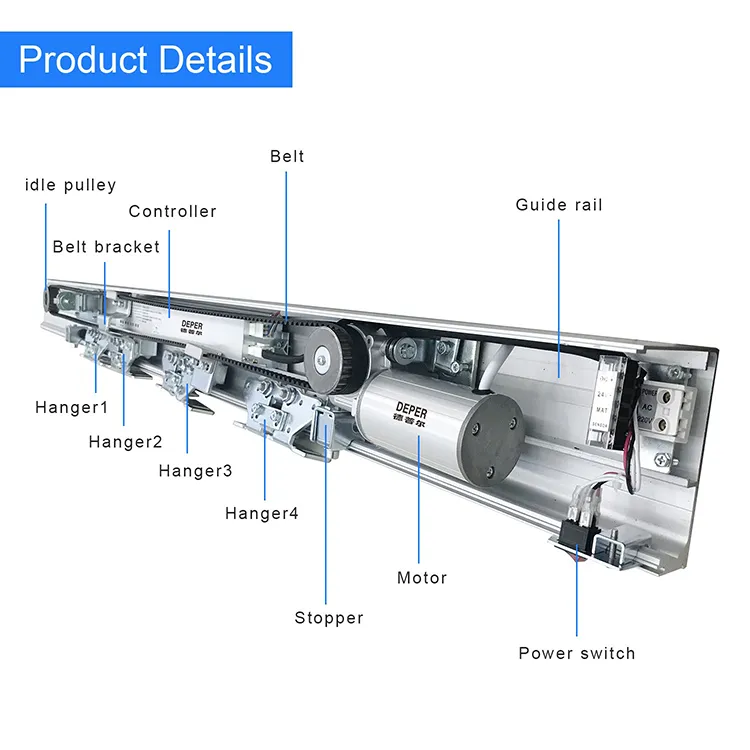

Adopting European motor and gearbox integration technology, the drive is strong, the operation is stable, the output power is improved, and it can adapt to the needs of larger doors.

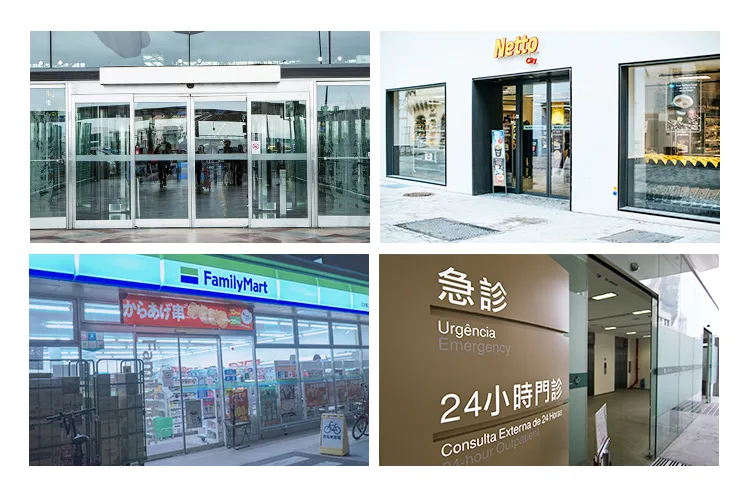

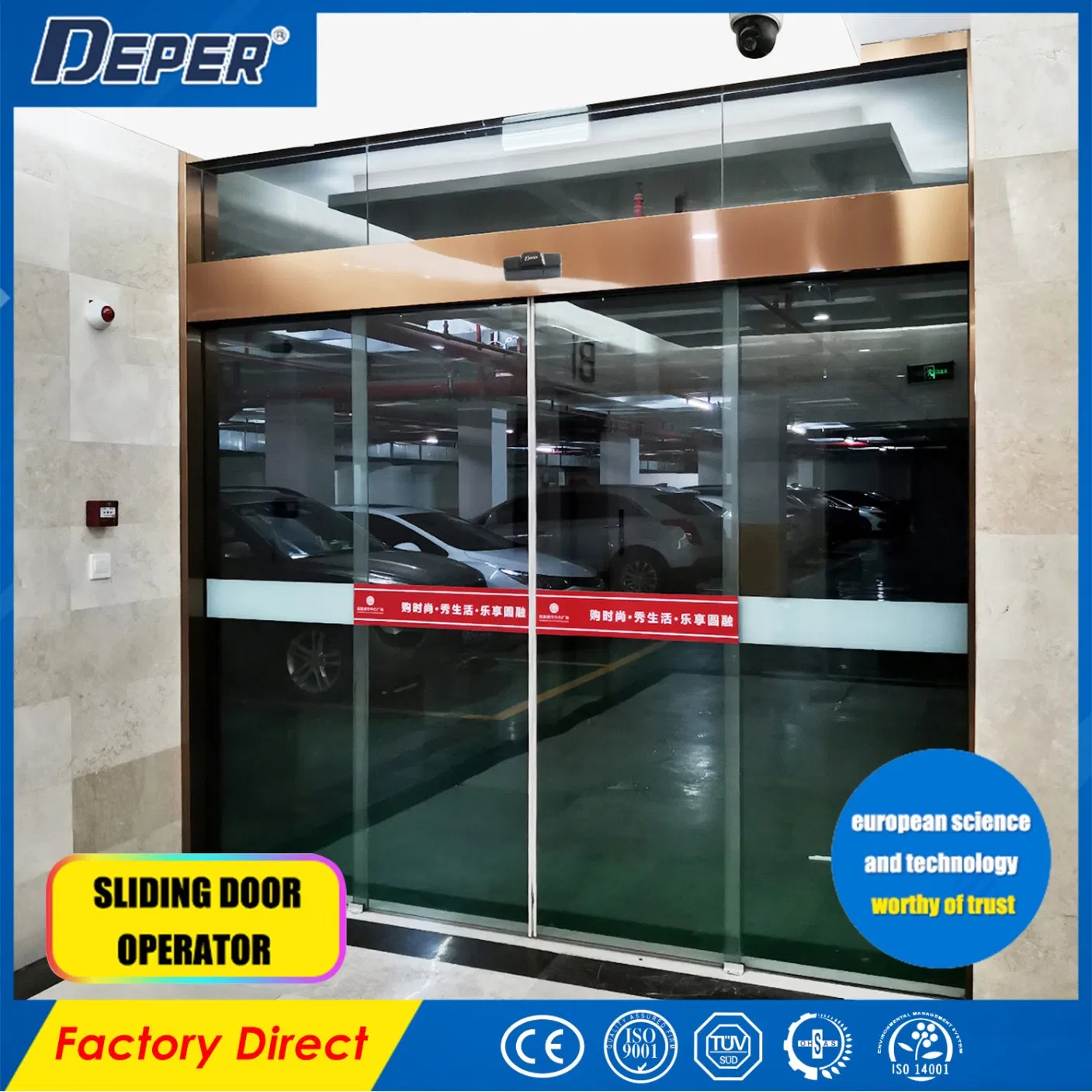

Suitable for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, hospitals and other places.
| Technical Data | |
|---|---|
| Door configuration: | Single leaf, Double leaves |
| Limited Weight: | ≤1×150kg, ≤2×125kg |
| Door leaf width: | 750-1600mm, 650-1250mm |
| Power voltage: | AC110V-220V±10% 50/60Hz |
| Power consumption: | <70W |
| Opening speed: | 200-450mm/S (adjustable) |
| Closing speed: | 200-450mm/S (adjustable) |
| Hold-open time: | 0-8S (adjustable) |
| Environment temperature: | -20~+50ºC |
| Guide rail length: | 2100mm, 4200mm, 4800mm, 5000mm, 6000mm |
Obtained "GF" EU certification and "AVC" certification. Certified as a "National High-tech Enterprise". Passed ISO9001:2015, ISO14001, and OHSAS18001 management system certifications.

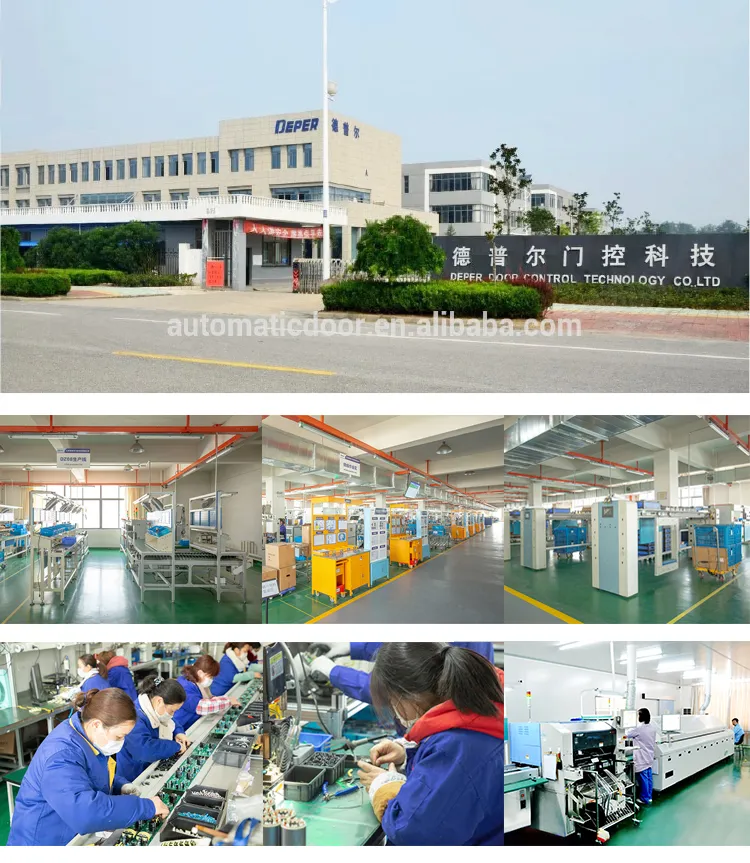

The production base features a standard workshop of approximately 31,000 square meters, supported by a professional team including technical development engineers and a dedicated QC department.
