📊 Basic Info.
Opening Type
With Remote Control
Certification
TUV, ISO9001, CE
Surface Finishing
Finished
Limited Weight
1×150kg, ≤2×125kg
Door Configuration
Single Leaf, Double Leaves
Power Voltage
AC220V, 50Hz
📦 Packaging & Delivery
Package Size
42.50cm * 14.00cm * 18.00cm
Package Gross Weight
31.000kg
📝 Product Description

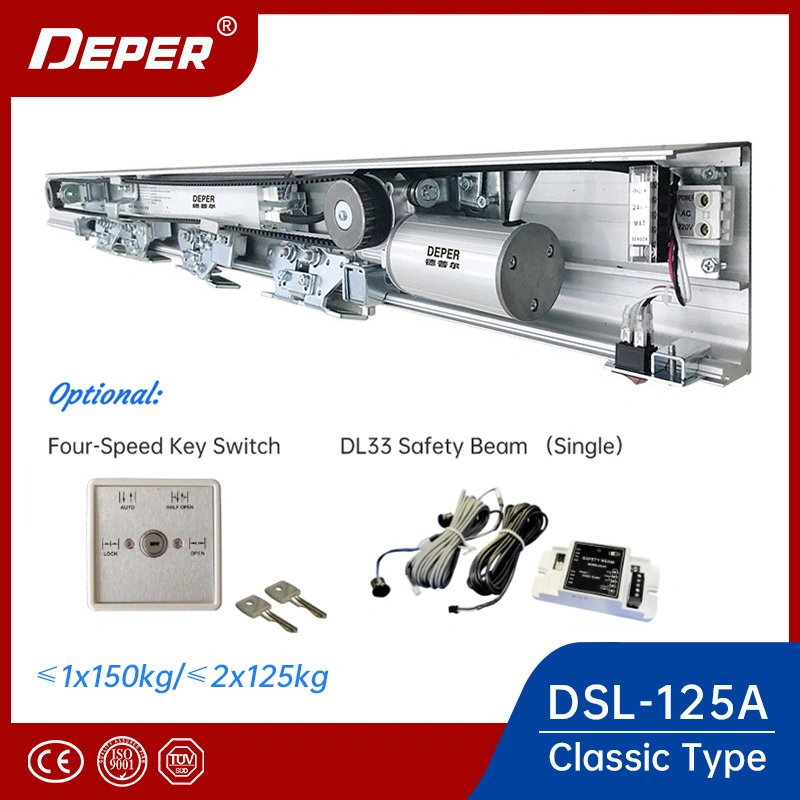

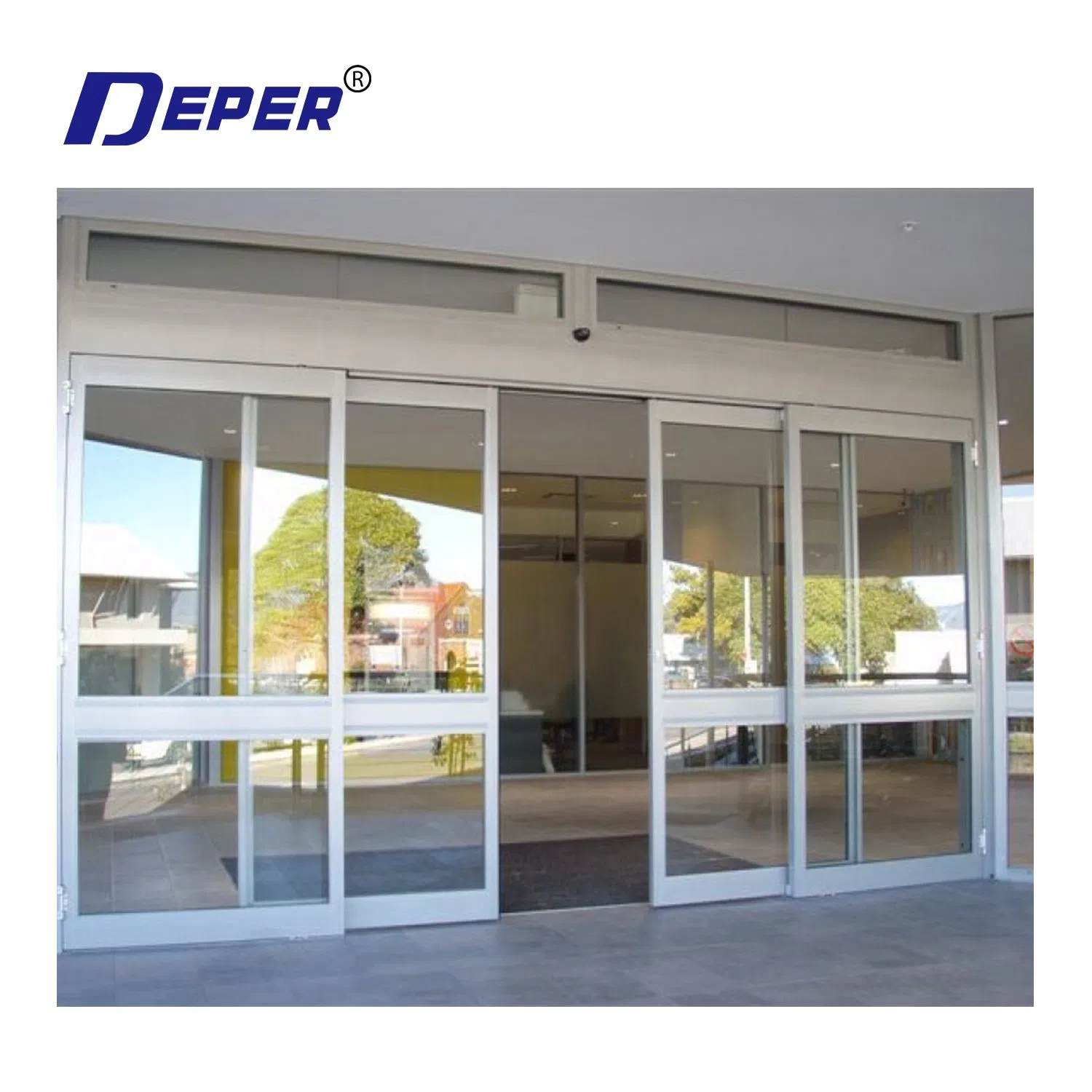

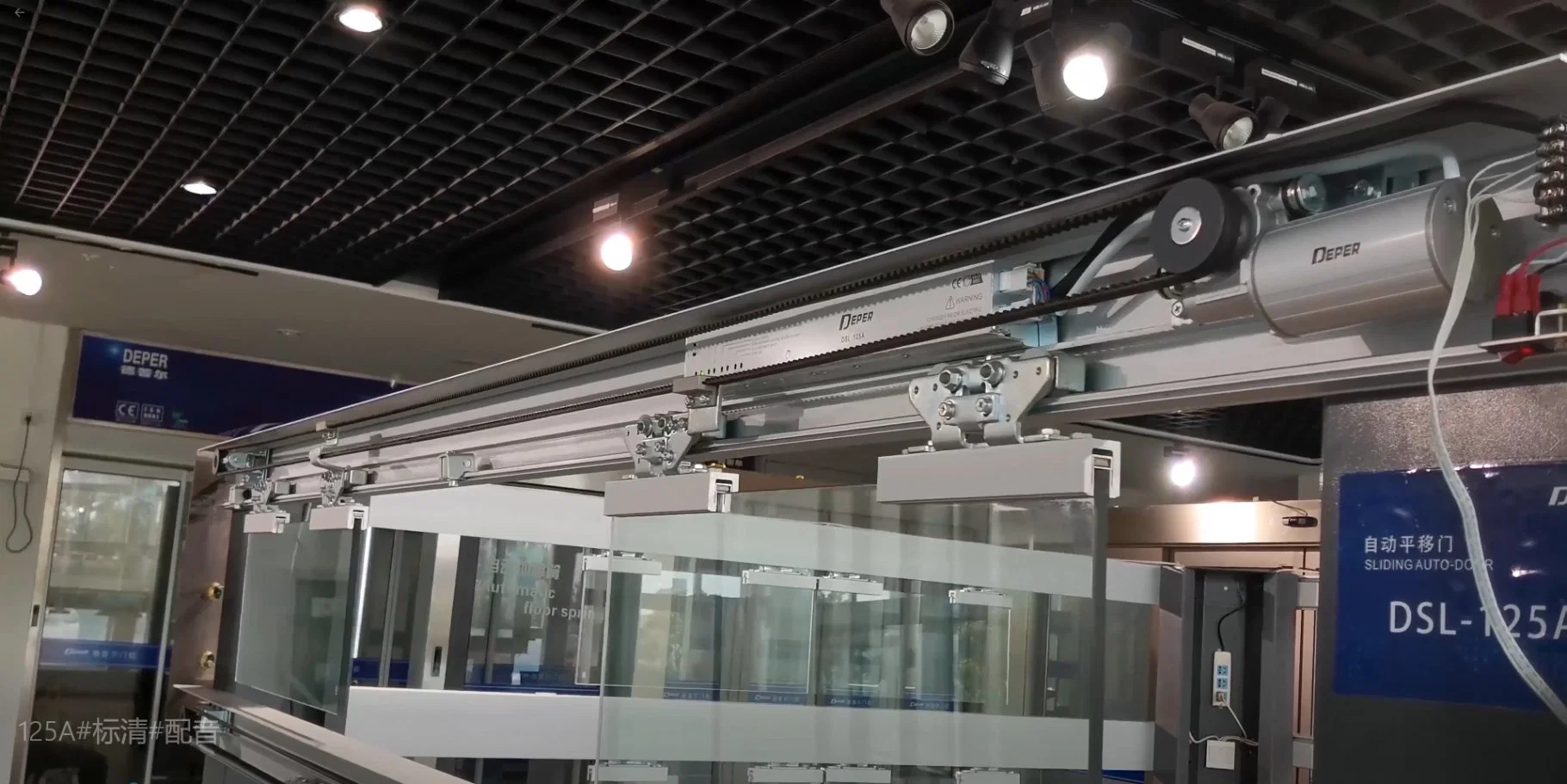

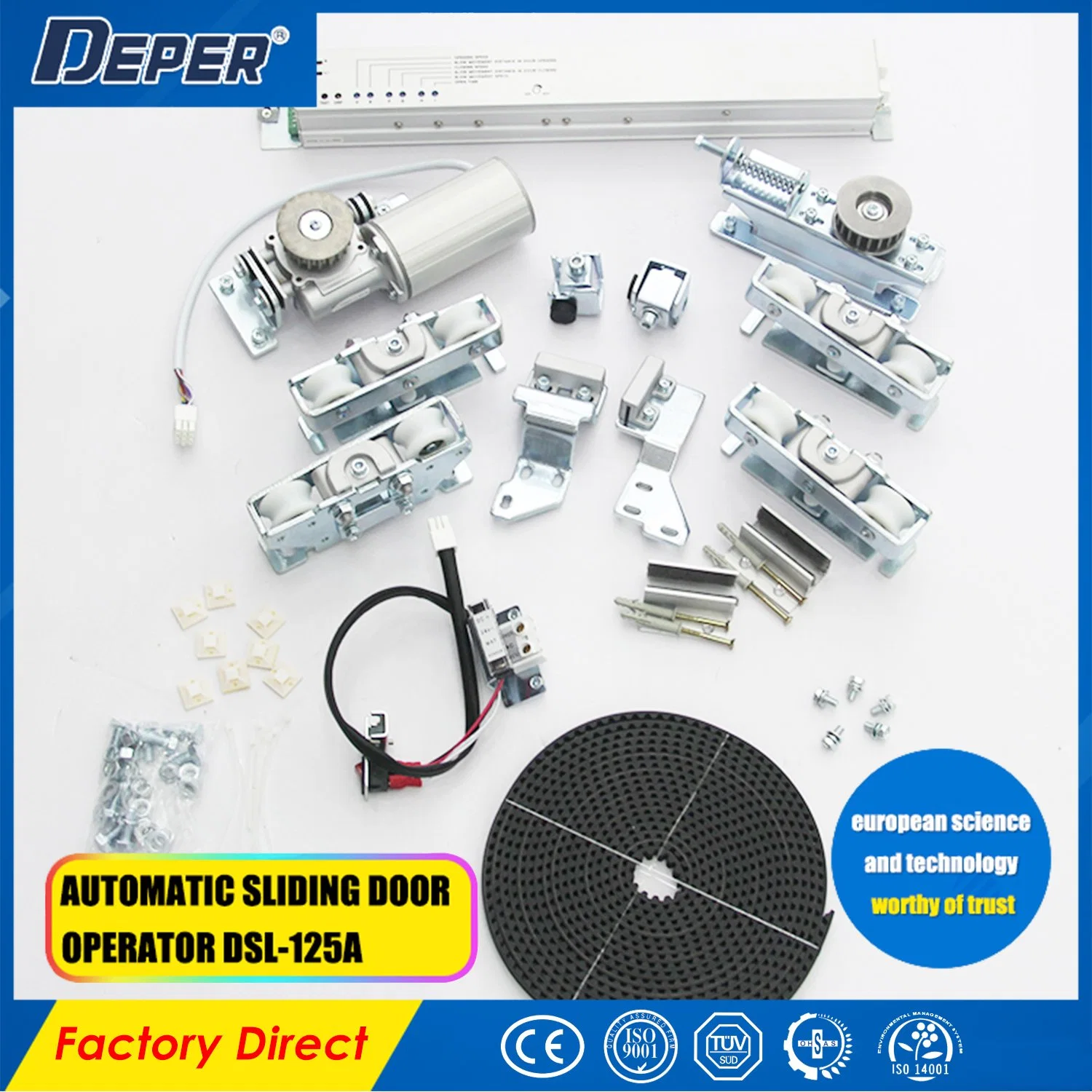

Automatic Sliding Door System for Entrance Door 125A
🚀 Product Advantages

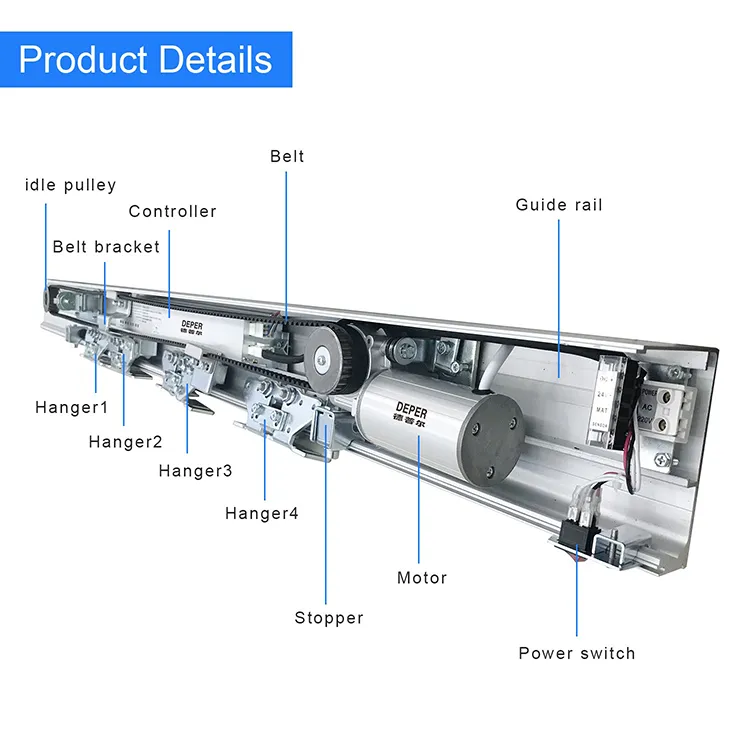

- Adopting European motor and gearbox integration technology for strong and stable operation.
- Microcomputer control system drives the motor in set modes with wide voltage design.
- Special deceleration mute wheel and roller structure reduce running noise.
- Safety rebound procedure: door rebounds when encountering resistance.

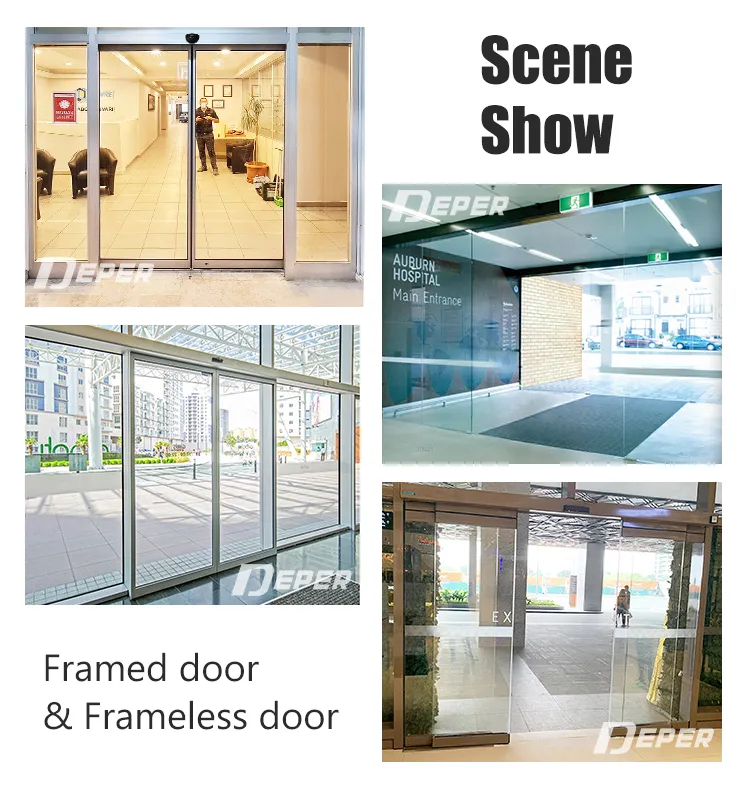

- Suitable for office buildings, storefronts, banks, restaurants, hotels, and hospitals.
| Technical Data |
|---|
| Door form | single door / double door |
| Loading weight | ≤1x150kg / ≤2x125kg |
| Door width | 750-1600mm / 650-1250mm |
| Power supply | AC110-220V, 50/60Hz |
| Power consumption | 65W (125A) |
| Opening speed | 150-460mm/S (adjustable) |
| Closing speed | 130-460mm/S (adjustable) |
| Open time | 0-8S (adjustable) |
| Manual force | <40N / <50N |
| Temperature range | -20 ~ +50ºC |

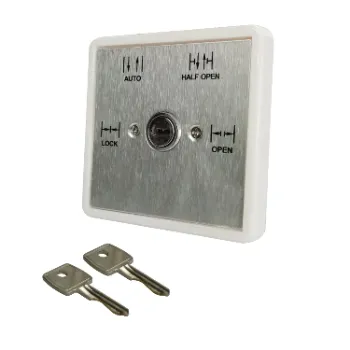

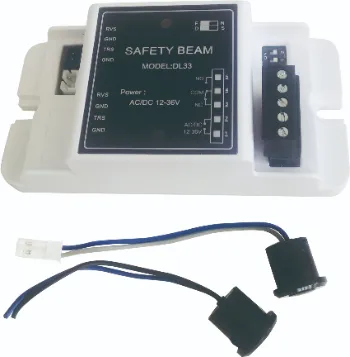

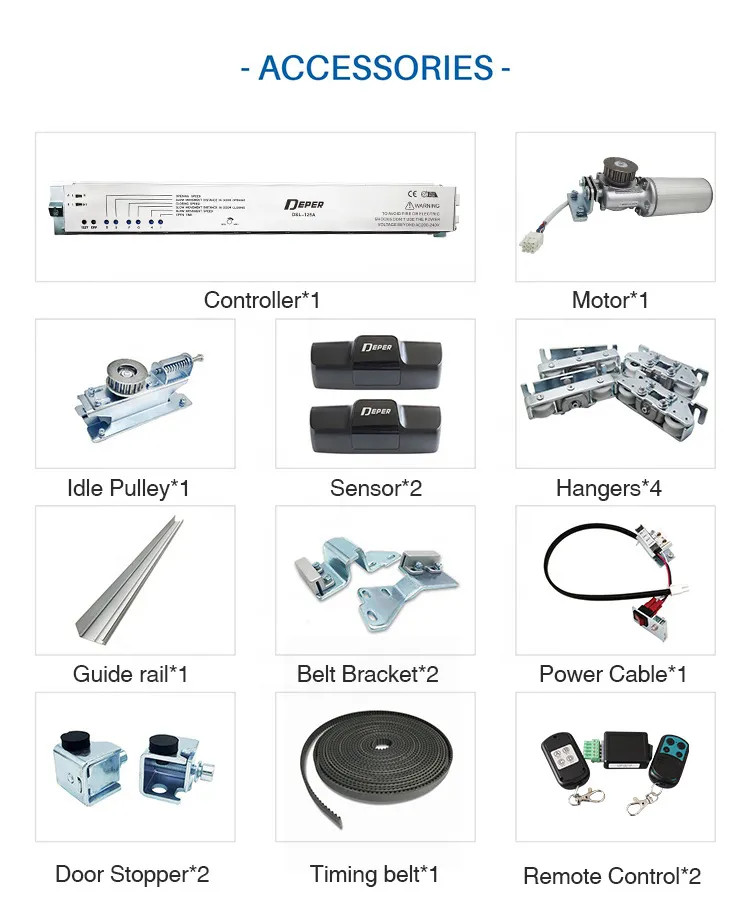

Optional Accessories: Four-speed key switch and DL33 Safety beam
⭐ Why Choosing Our Products
- 22 years factory outlet, competitive price, reliable quality.
- 1 million times of tests passed.
- CE, ISO9001:2015 certificated approved.
- Intelligent design, easy to install and adjust.
- Beautiful appearance with larger opening width.
- High security: immediate rebound upon obstacles.
📜 Certifications
Obtained "GF" EU certification, "AVC" certification, and "National High-tech Enterprise" certificate. Passed ISO9001:2015, ISO14001, and OHSAS18001 certifications.
🏭 Factory Overview
Founded in 2001, the production base covers more than 68,000 square meters with a 31,000 square meter standard workshop and a professional team of over 300 staffs, including 40 technical engineers and QC members.

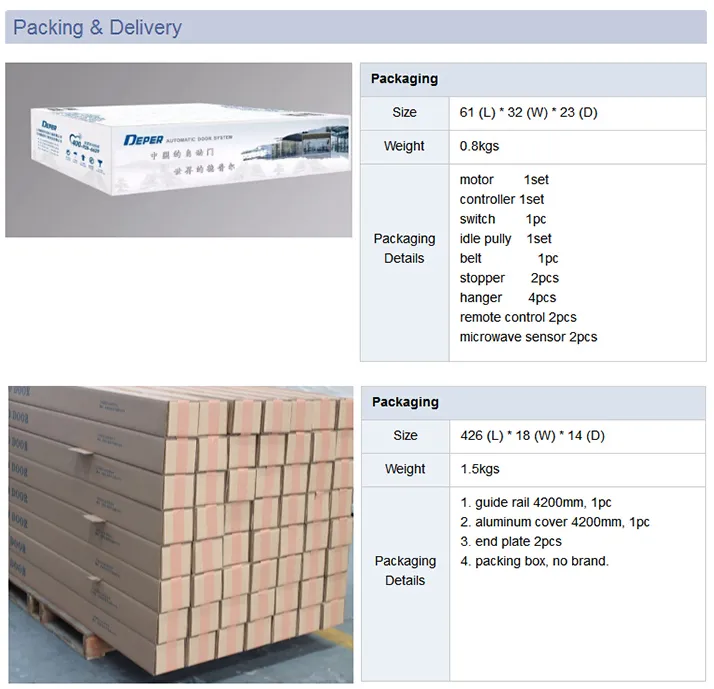

🚢 Packing & Delivery
❓ FAQ
Q1: Why should I choose your automatic door systems over other suppliers?
We are a leader in automatic door operator manufacturing with over 20 years of experience. All products carry CE and TUV certifications, backed by a dedicated team of over 30 design engineers.
Q2: What range of products do you offer?
We provide complete Automatic Door Systems, including Sliding Doors, Hospital Doors, Revolving Doors, Automatic Swing Doors, and all related access components.
Q3: How is product quality guaranteed?
We maintain strict quality control through pre-production samples before mass manufacturing and a rigorous final inspection before every shipment.
Q4: What delivery and payment terms do you accept?
We accept various terms including FOB, CFR, CIF, EXW, DDP, and payments via T/T, L/C, Credit Card, and PayPal in USD, EUR, or CNY.
Q5: Is the door system safe for high-traffic public areas?
Yes, the system features a self-test procedure and automatic rebound technology that triggers immediately if an obstacle is encountered, ensuring maximum safety for passers-by.
Q6: Are your products certified for international markets?
Absolutely. Our systems hold CE, TUV, and ISO9001:2015 certifications, meeting international standards for performance and safety.
