GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
1 / 5
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System
GS100 Automatic Sliding Glass Door Drive System

GS100 Automatic Sliding Glass Door Drive System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.:GS100
Material:Aluminum Alloy
Type:Sliding
Motor:Dunkermotoren Motor
Holding Weight:100kg*2
Power Supply:110V-220V
Certification:TUV, ISO9001, CE
Speed:70cm/S
Application:Buildings, Shops, Malls, Hospitals
Origin:Germany
Product Overview

GS100 automatic sliding door drive focus on the essential drive functions means that highest qualities are achieved at optimum price-performance ratios. The modular design provides for time-saving installation and maintenance. Clear and simple start-up and operation. The use of large rollers guarantees smooth and quiet running and also durability. The drive is type-tested by TÜV and certified to EN 16005. It therefore complies with current Euro standards.

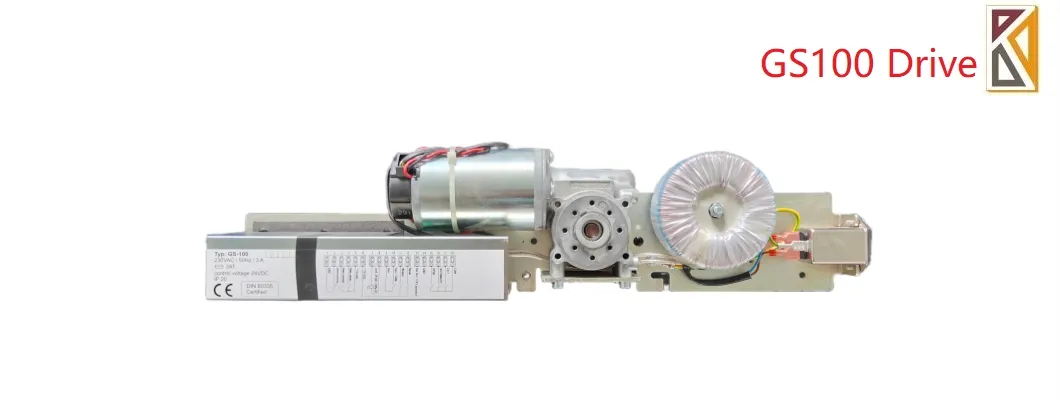

GS100 Drive System
Key Features
  • The modular design offers quick installation and maintenance of the mechanism
  • Easy and simple start-up and operation
  • The use of large rollers ensures smooth and noise-free operation as well as durability
  • Fast opening with speed up to 0.9 m/s
  • Excellent quality with optimal value for money

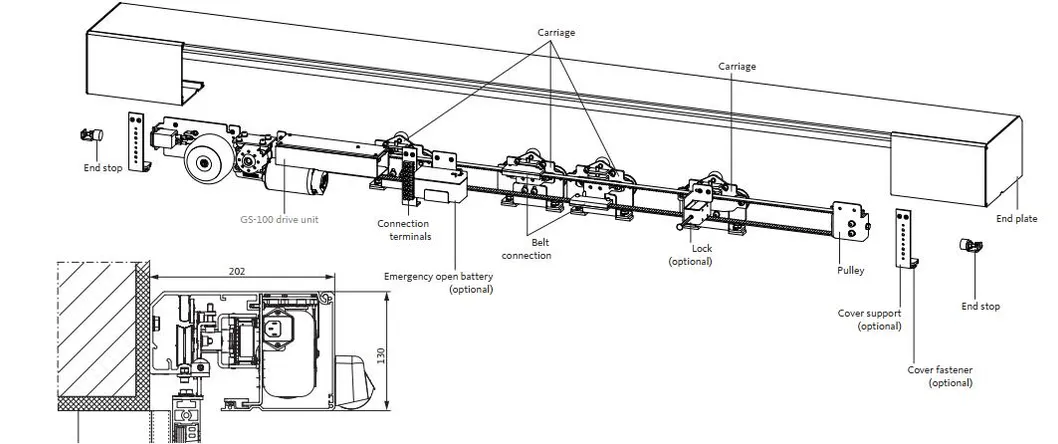

Installation Overview

GS100 automatic door profile is surface model and slim and modular design. height 130mm, Depth 202mm and for 100KG double open door.

Installation Overview
Technical Data
Type of driveGS100
Door Panels1 leaf2 leaf
Clearance width700 - 1800 mm900 - 2800 mm
Max. door weight100 kg/leaf
Supply voltage230 V/AC ± 10%, 50 - 60 Hz
Opening speedmax. 0.9 m/s
Closing speedmax. 0.7 m/s
Protection typeIP 20
Wire Diagram & Package

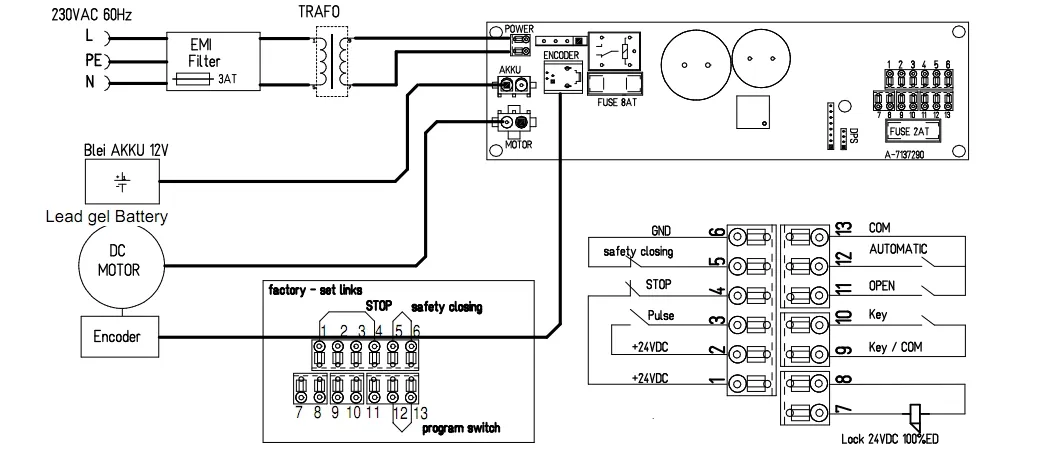

Wire Diagram

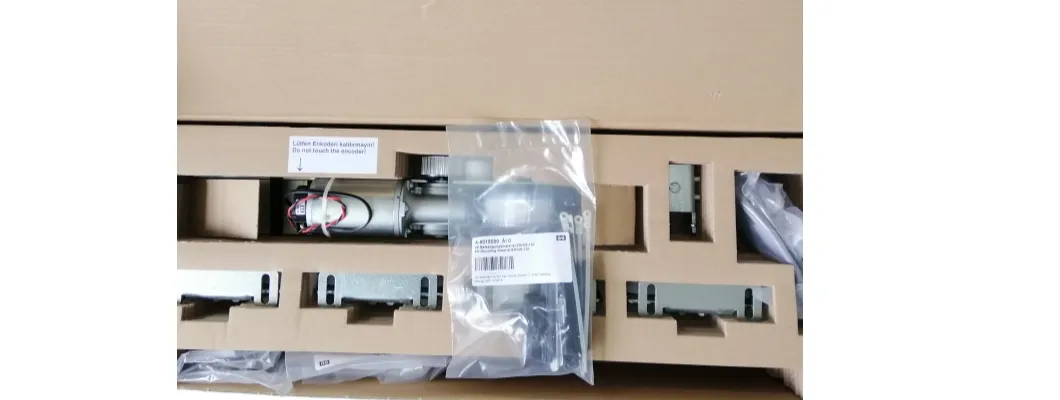

Package
Frequently Asked Questions
Q1: What is the maximum door weight the GS100 can handle? A: The GS100 system can support up to 100kg per door leaf for both single and double leaf configurations.
Q2: Does the system comply with safety standards? A: Yes, the drive is type-tested by TÜV and fully certified according to the EN 16005 European standard.
Q3: What kind of motor is used in the GS100? A: The system is equipped with a high-quality Dunkermotoren motor for reliable and durable performance.
Q4: Can the opening and closing speeds be adjusted? A: Yes, the system allows for force adjusting and supports an opening speed of up to 0.9 m/s and a closing speed of up to 0.7 m/s.
Q5: Is the GS100 suitable for commercial use? A: Absolutely. It is designed for commercial positions such as buildings, shops, malls, and hospitals.
Q6: What are the power requirements for installation? A: The system supports a wide range of supply voltages from 110V to 220V AC (230V ± 10%).
