| Technical Data | |
|---|---|

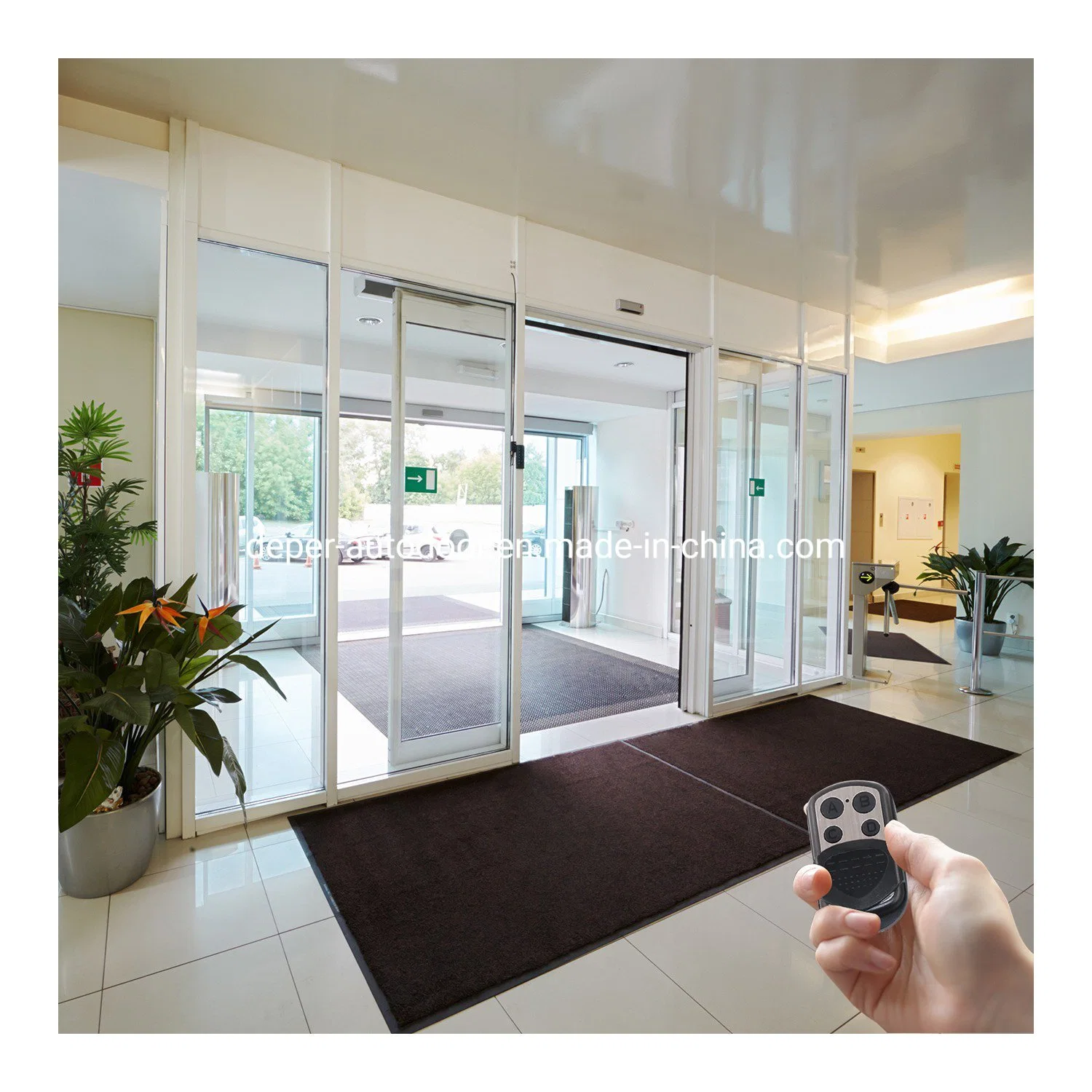

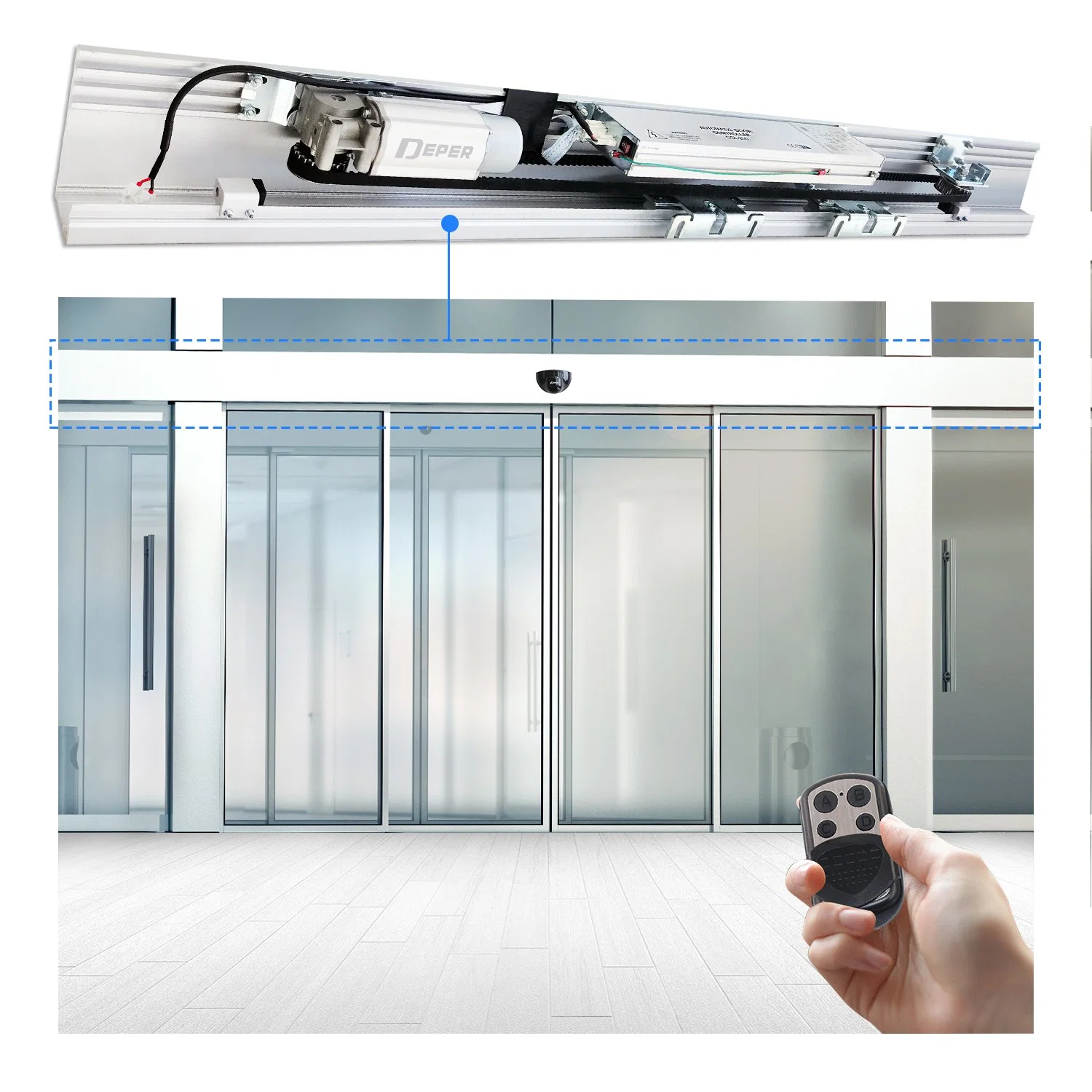

| Product Name | Office Building Entrance With Sensor Automatic Sliding Door System |
| Door Form | Single door / Double door |
| Limited Weight | ≤1×150kg, ≤2×125kg |
| Clean Opening Width | 600-1800mm / 1000-3000mm |
| Power Supply | 220V ± 10%, 50/60Hz |
| Rated Power | 65W |
| Opening/Closing Speed | 200-500mm/S (adjustable) |
| Hold-open Time | 0-9S (adjustable) |
| Manual Force | <30N / <40N |
| Environment Temp | -20 ~ +50ºC |

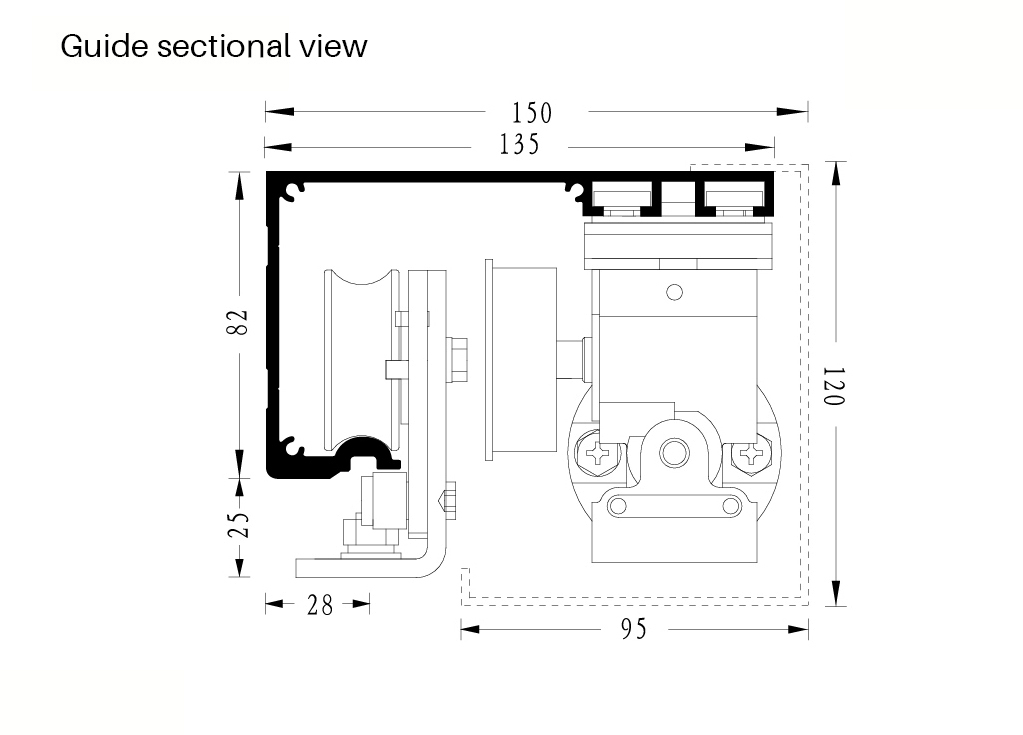

| Guide Rail Length | 2100mm, 4200mm, 4800mm, 5000mm, 6000mm |
1. Microcomputer control unit with self-learning function for smooth and safe operation.
2. Power-off safety: The door holds open for escape time. DSL-200L includes a motor lock.
3. European-style structure with larger pulley for quiet and stable movement.
4. Emergency stop support and safety beam integration for full protection.

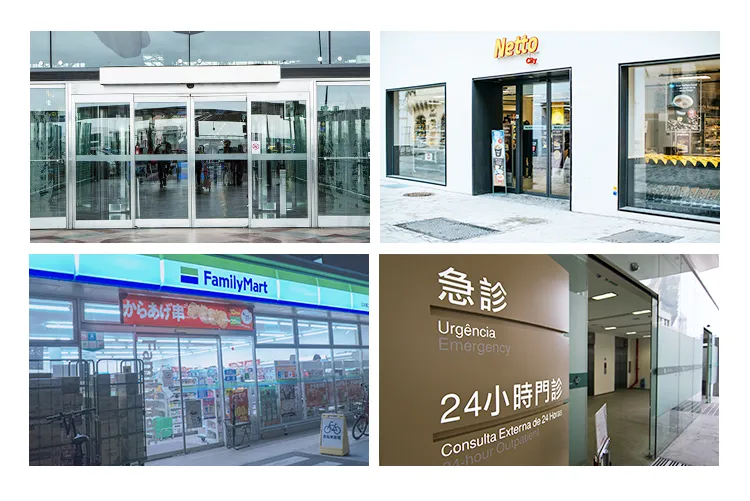

5. Versatile applications: office buildings, storefronts, banks, restaurants, hotels, and hospitals.

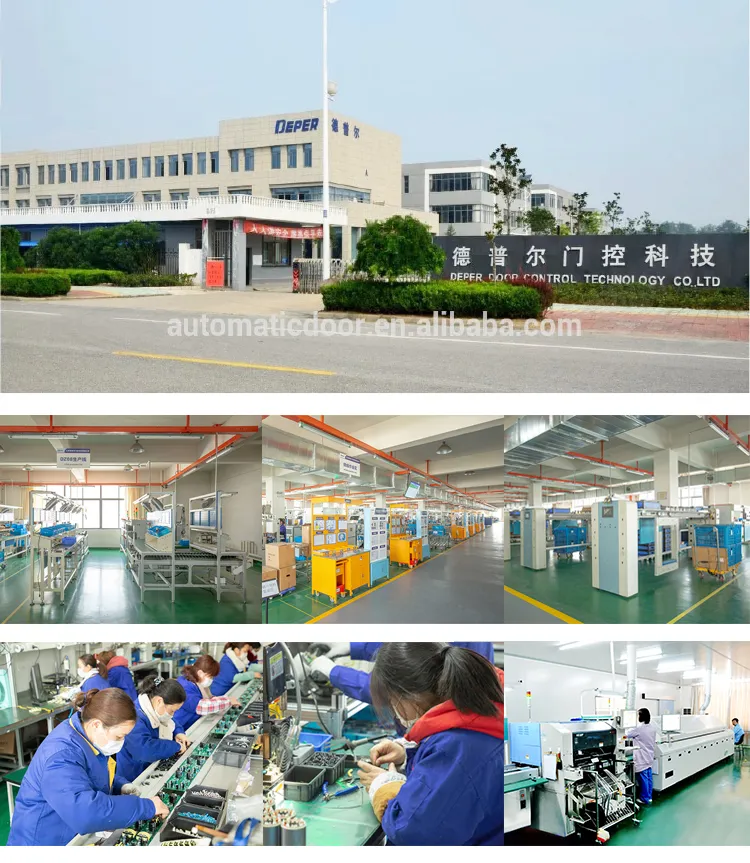

Our production base spans over 68,000 square meters with a 31,000 square meter standard workshop. We provide comprehensive solutions including sliding, magnetic, swing, folding, and telescopic automatic doors, as well as medical airtight doors and access systems.
