The safety revolving automatic door combines elegance, beauty, dignity, and luxury characters. It facilitates pedestrian access by utilizing a perimeter drive that eliminates the need for a bulky center shaft. It provides excellent separation of the interior and exterior environments, reducing heating and cooling losses, creating an inviting and spacious entrance for your building.

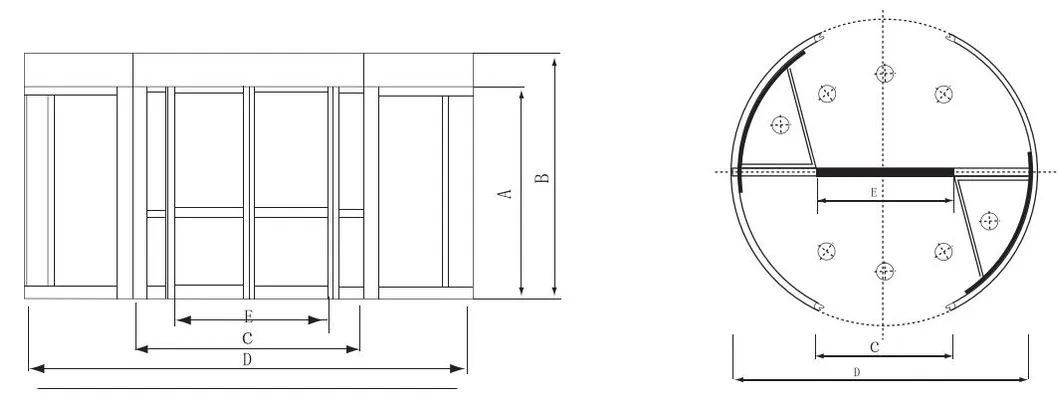

| Product | Φ (Diameter) | A (Height) | B (Total Height) | C | D | E |
|---|---|---|---|---|---|---|
| KA-A3400-2E | 3400 | 2200 | 2600 | 1510 | 3566 | 1500 |
| KA-A3600-2E | 3600 | 2200 | 2600 | 1610 | 3766 | 1600 |
| KA-A4200-2E | 4200 | 2200 | 2600 | 1910 | 4366 | 1900 |
| KA-A4800-2E | 4800 | 2200 | 2600 | 2210 | 4966 | 2200 |
Notes:
1. Inner diameter standard size: 3400mm~ 4800mm
2. Add sliding autodoor between doors
3. Head rail standard height: 300mm or 400mm; Door leaf standard height: 2200mm (regulation range 2200mm-2400mm)
4. Exterior can be fluocarbon coating spraying or stainless steel
| Withstanding Voltage | 1500V/min |
| Revolving speed | 0.45 ~ 0.7m/s |
| Working Temperature | -30°C ~ 40°C |
| Power voltage | Single phase 220V±10% 50Hz |
| Total power | 1450W |
| Noise | <60dB |
| PLC programmable controller system | Yes |
| Operation modes (Automatic/Manual) | Yes |
| Safety with Anti-bump, anti-squeeze, anti-strike | Yes |
| Access control with radars, remote, keypad | Yes |
| Emergency with Disable switch, emergency stop | Yes |
| Backup battery pack for emergency operation | Yes |
