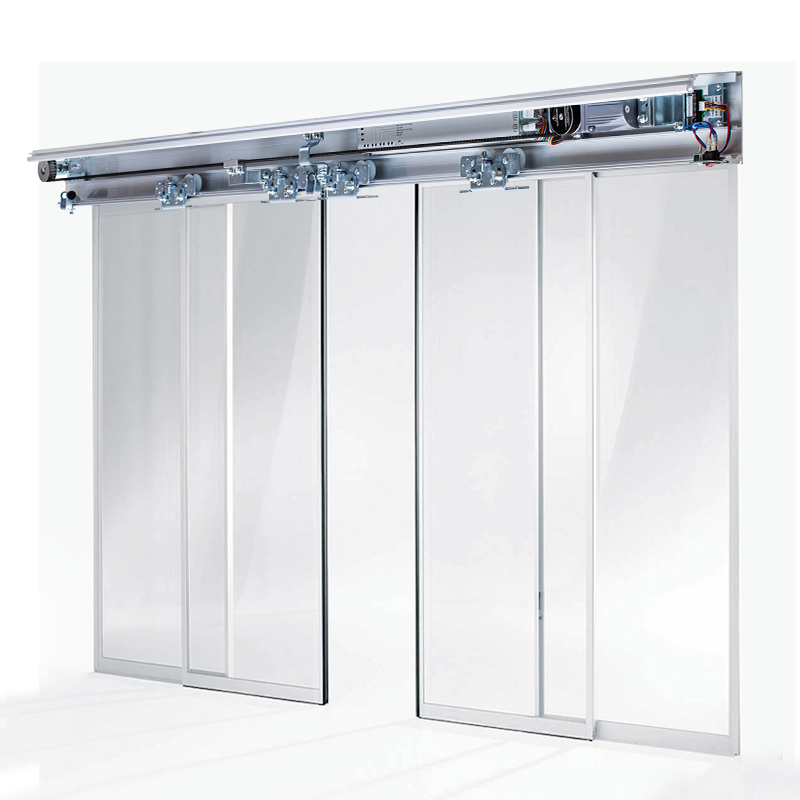

Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
1 / 5
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System
Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System

Turtech Hh115 Sliding Door Operator Automatic Entrance Residential System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HH115
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Power Driven
Special Function
Security
Color
Silver
Certification
TUV, CCC, ISO9001, RoHS, CE
Max Door Weight
1*150kg
Opening Speed
150~550mm/S
Motor Details
24V 100W 2300rpm
Voltage
AC 100-240V 50-60Hz
🚀 Product Description

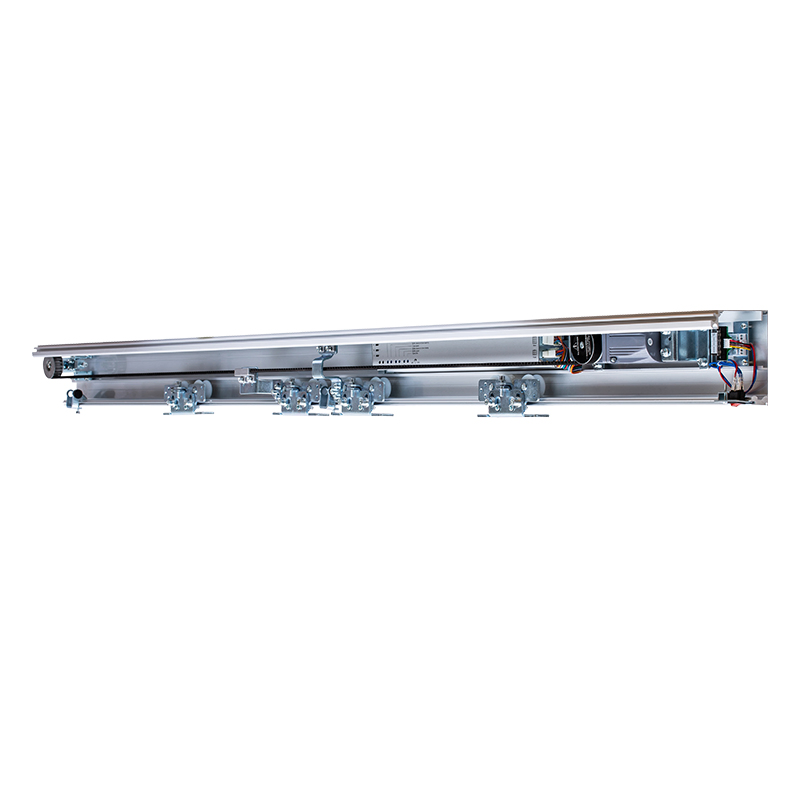

HH115 automatic glass sliding door system door opener suitable for narrow door

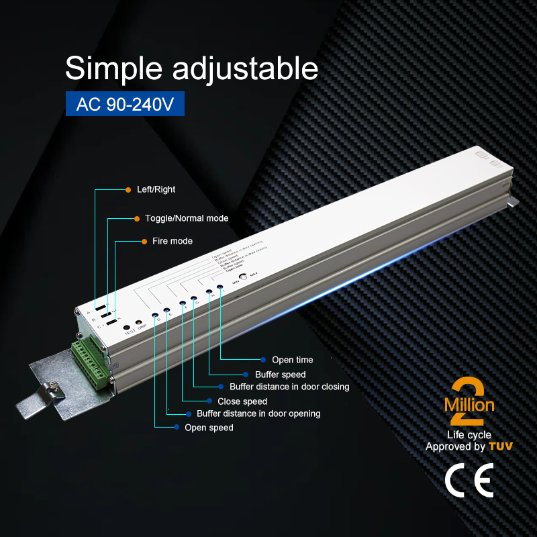

✔ Digital screen, easy and exact to adjust working data.

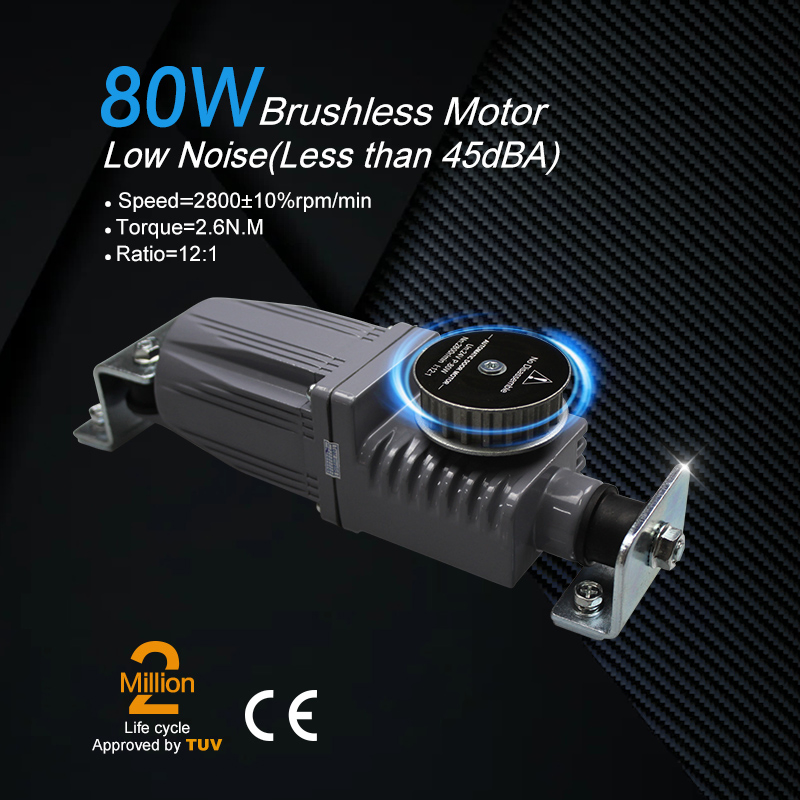

✔ Brushless DC motor, long working life and low noise (less than 40dp).
✔ Anti-clamp when close and open for enhanced safety.
✔ Function terminals for electronic lock, access keypad, remote control and more.
✔ Special Japanese design where hangers can pass the motor, ideal for narrow entrances.
Sliding Door Operator 1

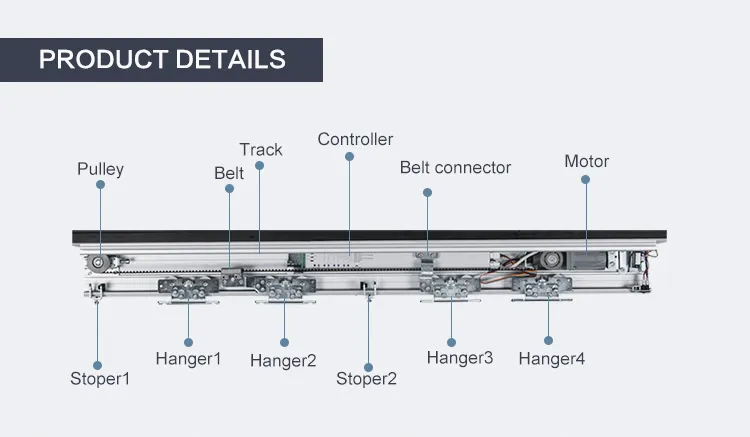

Sliding Door Operator 2

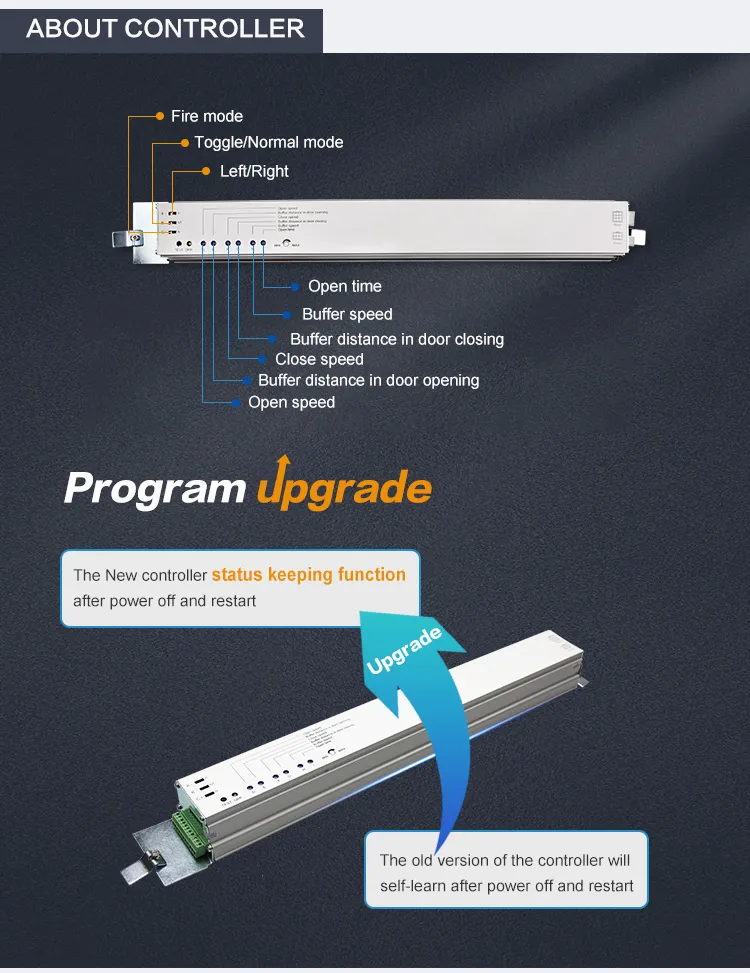

Sliding Door Operator 3

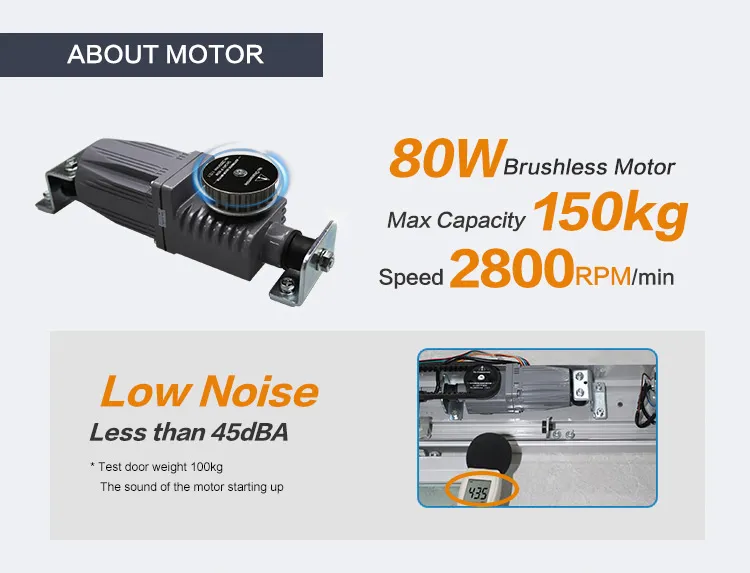

Sliding Door Operator 4

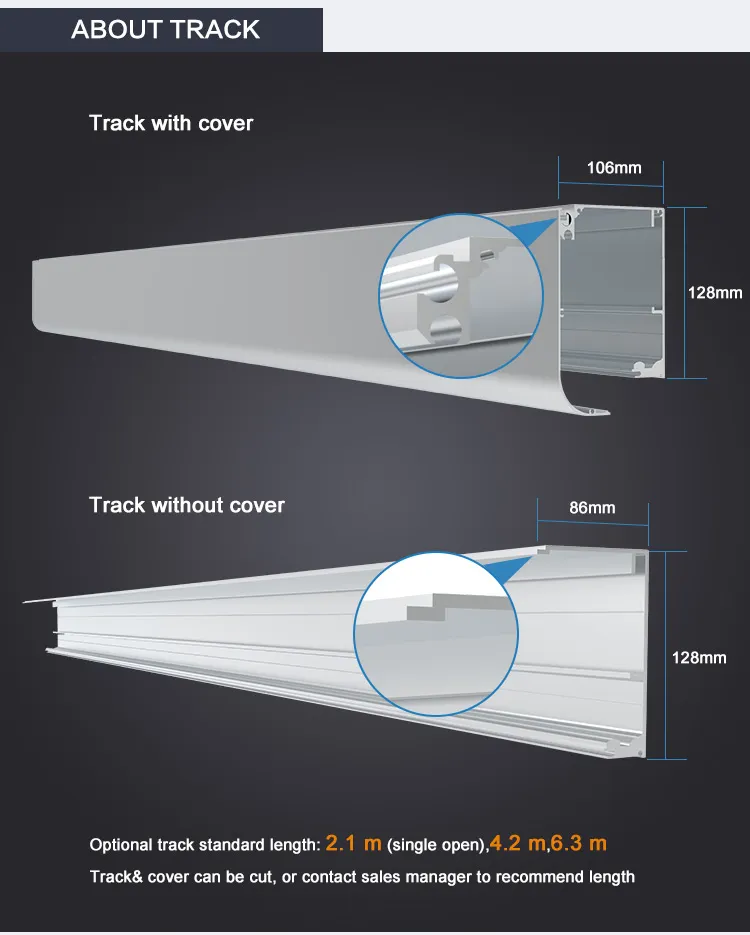

Sliding Door Operator 5

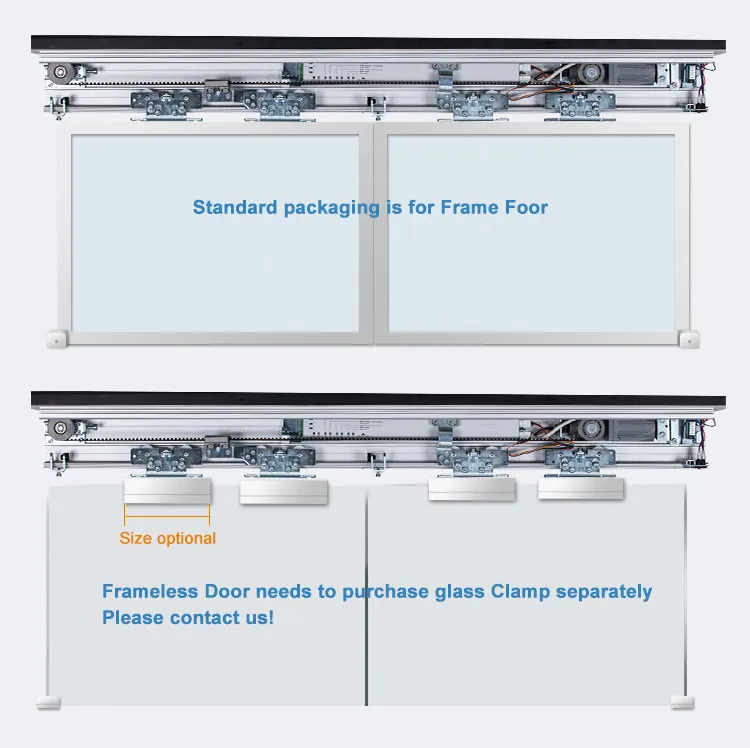

Sliding Door Operator 6
📊 Technical Specifications
Max door weight (single)1*130kgs
Max door weight (double)2*120kgs
Door leaf width700-1300mm
Opening speed150-500mm/s (Adjustable)
Closing speed150-450mm/s (Adjustable)
Square motor24V 55W brushless DC motor
Opening time0-8 second (Adjustable)
VoltageAC90-250V 50Hz-60Hz
Operating Temperature-20°C to 70°C
❓ Frequently Asked Questions
🔹 What makes the HH115 suitable for narrow doors?
The HH115 features a special Japanese design where the hangers can pass the motor, making it the perfect solution for rooms with limited entrance space.
🔹 Is the system safe for public use?
Yes, it includes an anti-clamp function for both opening and closing cycles, ensuring safety for users in commercial and residential settings.
🔹 What happens if there is a power failure?
When working with a backup battery, the door can be set to stay open automatically if there is no power.
🔹 Can I connect access control systems?
Absolutely. The system has dedicated terminals for electronic locks, finger printers, access keypads, and fire alarms.
🔹 Is the motor noisy during operation?
No, the system uses a high-quality brushless DC motor that operates at low noise levels, typically less than 40dB.
