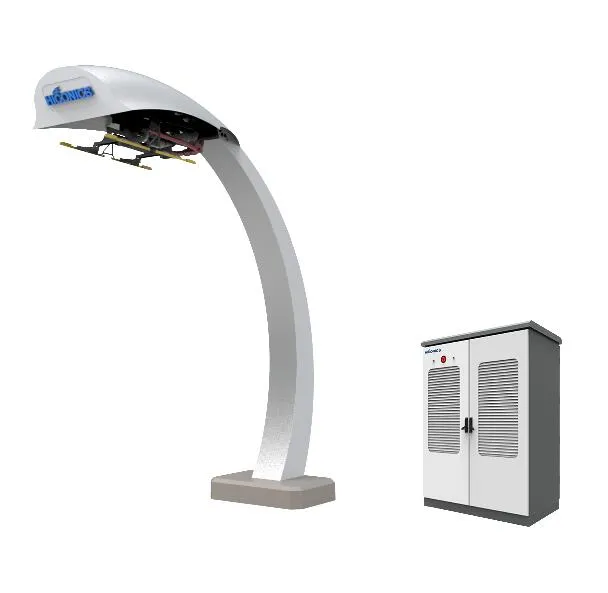

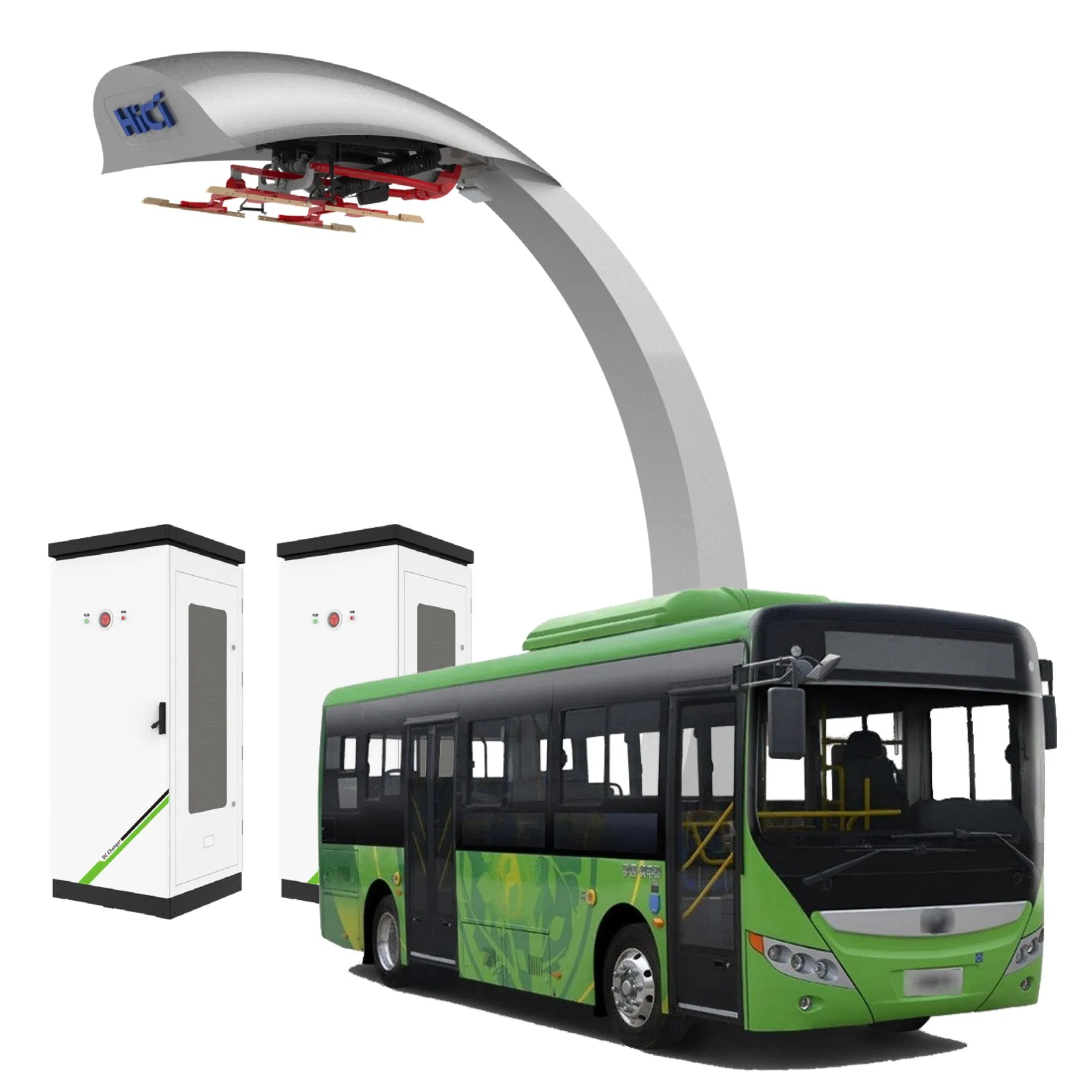

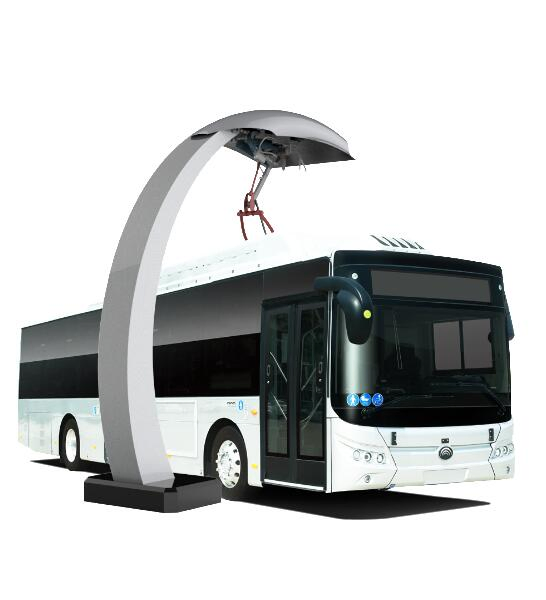

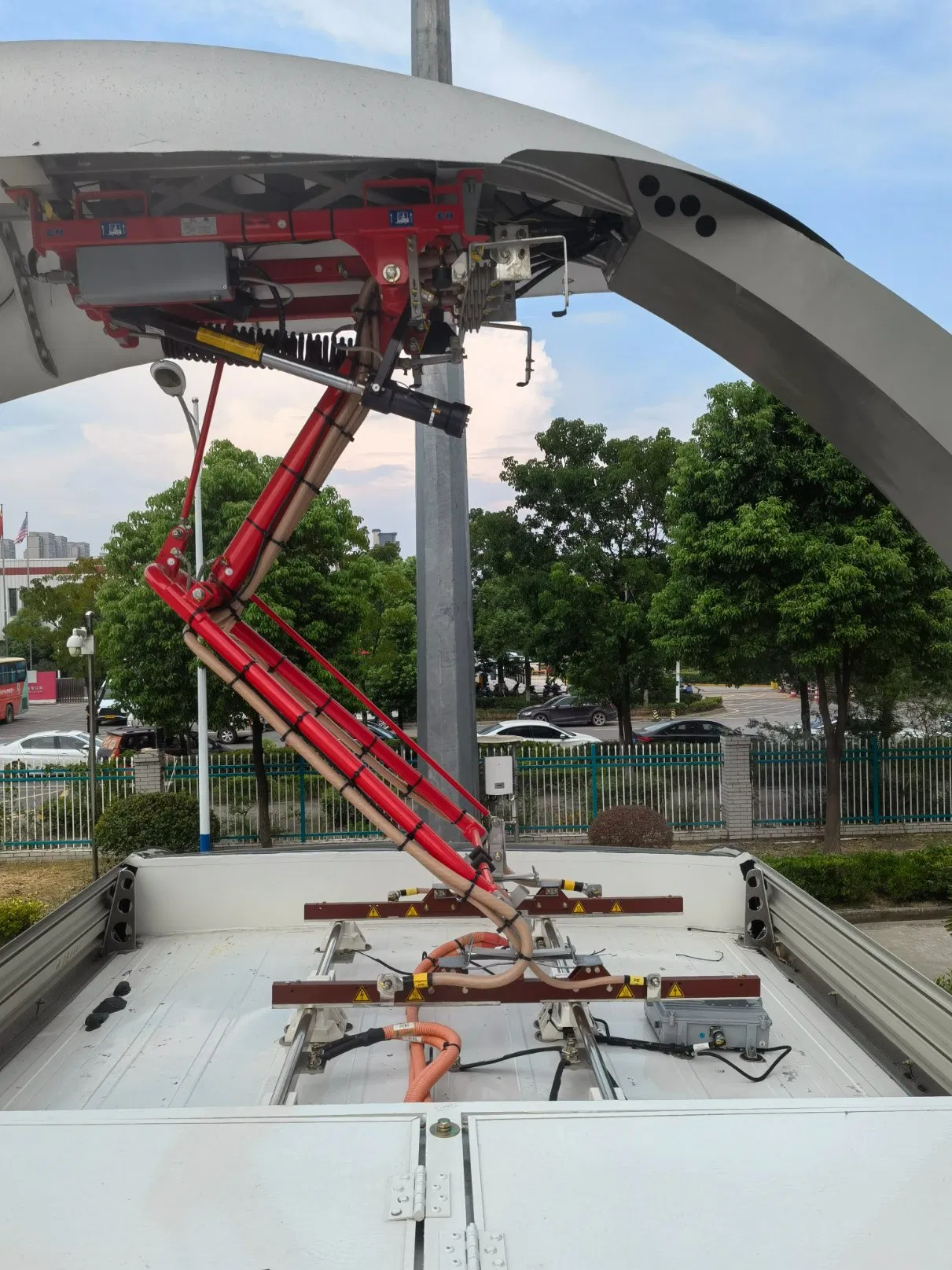

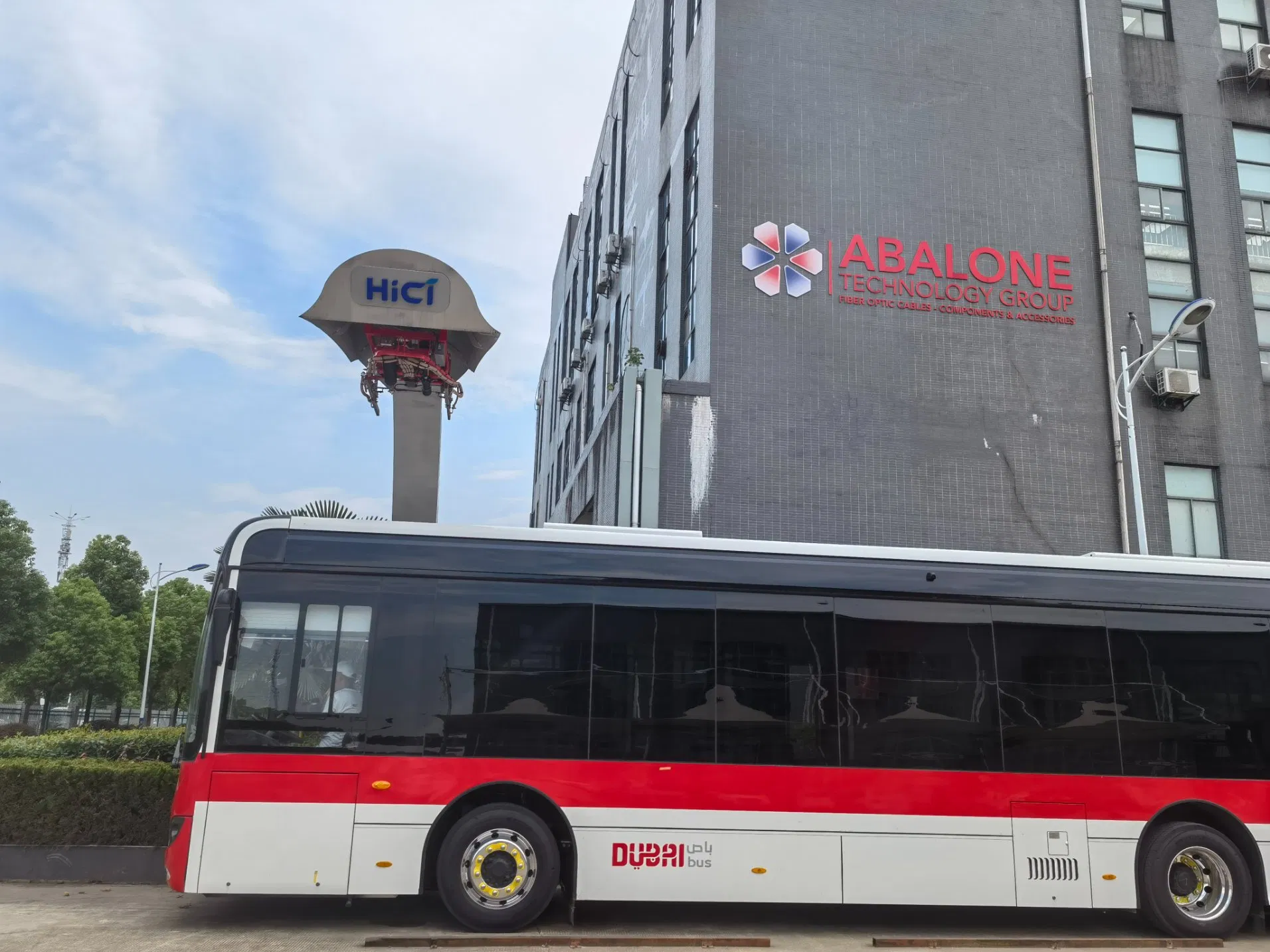

The split type pantograph system is a kind of high-power quick charging equipment developed for pure electric buses. The system is composed of a "charging module cabinet + charging interface," ensuring convenient maintenance and a superior user experience. Featuring a streamlined design, the cabinet is treated with galvanizing and multi-layer spraying, achieving mechanical characteristics greater than IK10. With IP54 protection, it is waterproof, dustproof, and anti-corrosive.
PLC carrier communication realizes accurate positioning and data interaction between the bus and pantograph. It meets ISO15118 standards with a maximum output current reaching 800A for ultra-fast charging.

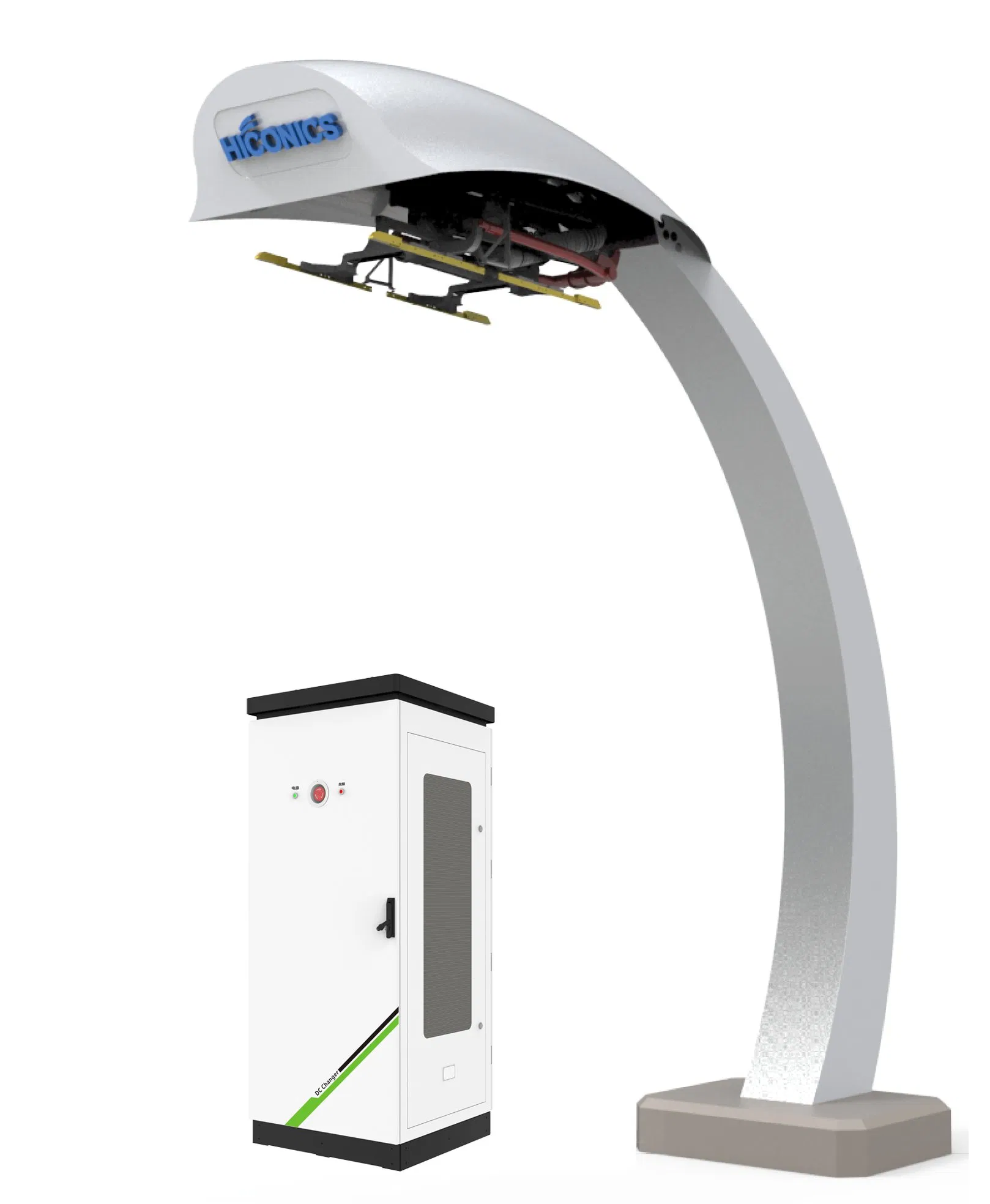

Separates the power unit from the charging interface for easier installation. Utilizes premium imported charging interfaces and a robust steel frame design for safety and reliability.
Comprehensive protection including overvoltage, undervoltage, overcurrent, short circuit, emergency stop, leakage current, and lightning surge protection.
| Item | Technical Requirements |
|---|---|
| Nominal Voltage | 400VAC±15% |
| Input Current (MAX) | 1100A |
| AC Input Frequency | 40~60HZ |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Efficiency | ≥0.95 (50% load or above) |
| IP Class | IP54 |
| Operation Temp | -30ºC~+55ºC |

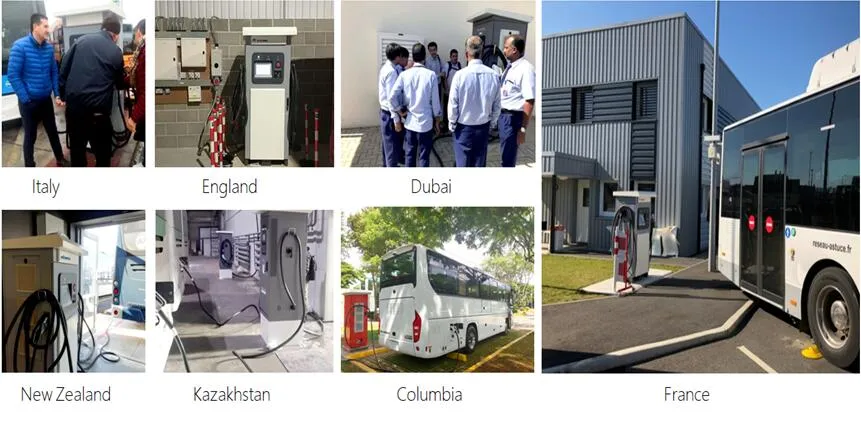

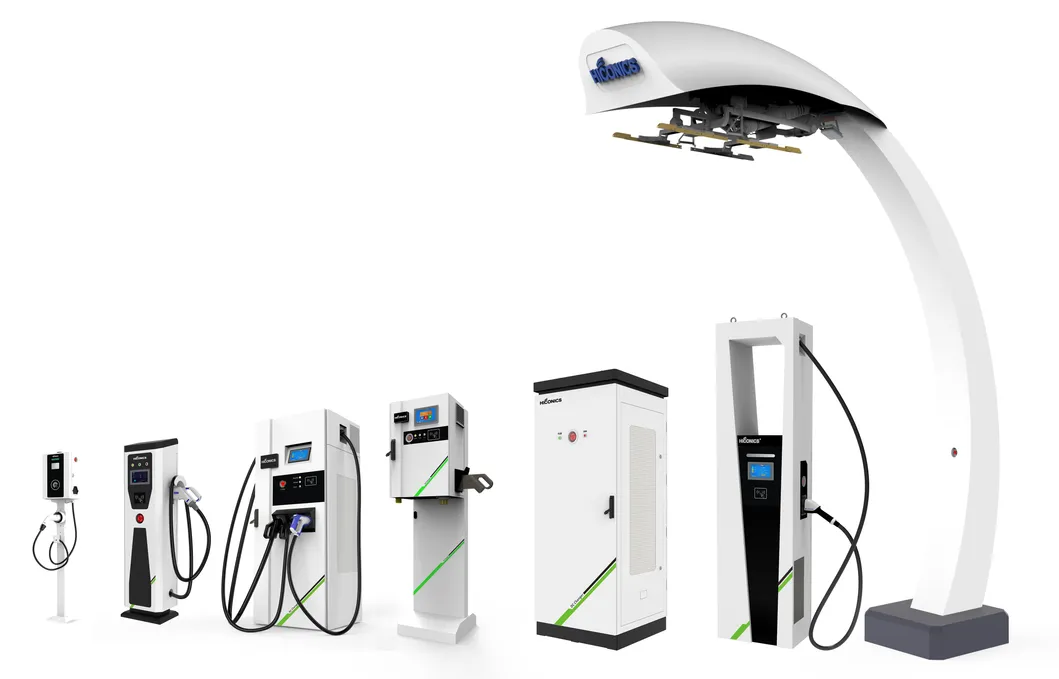

The EV charger solutions have been widely applied in over 200 cities and approximately 27 countries and regions overseas including England, France, Bulgaria, Australia, the Middle East, and Singapore. We provide comprehensive experience in actual application and service.

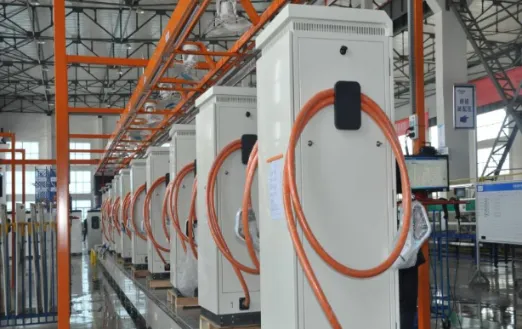

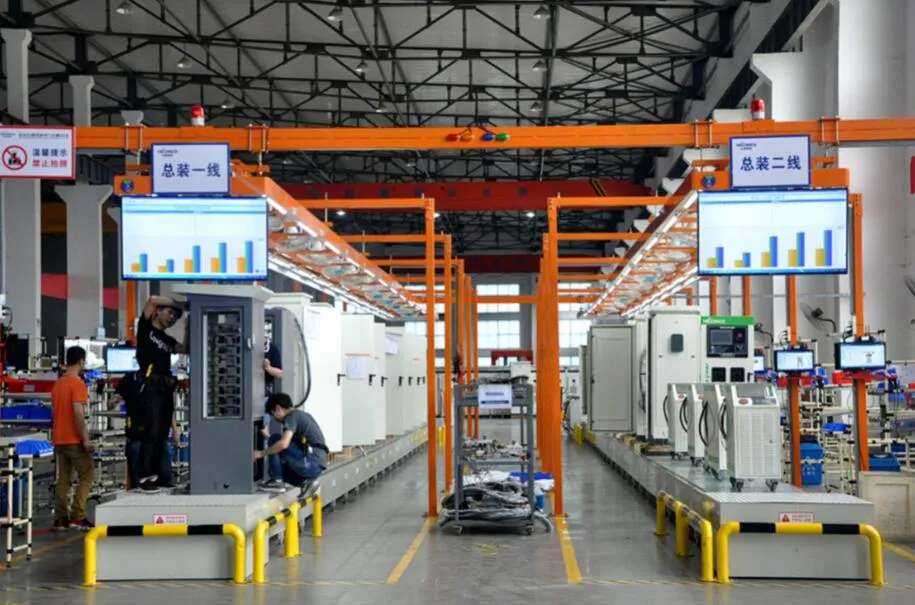

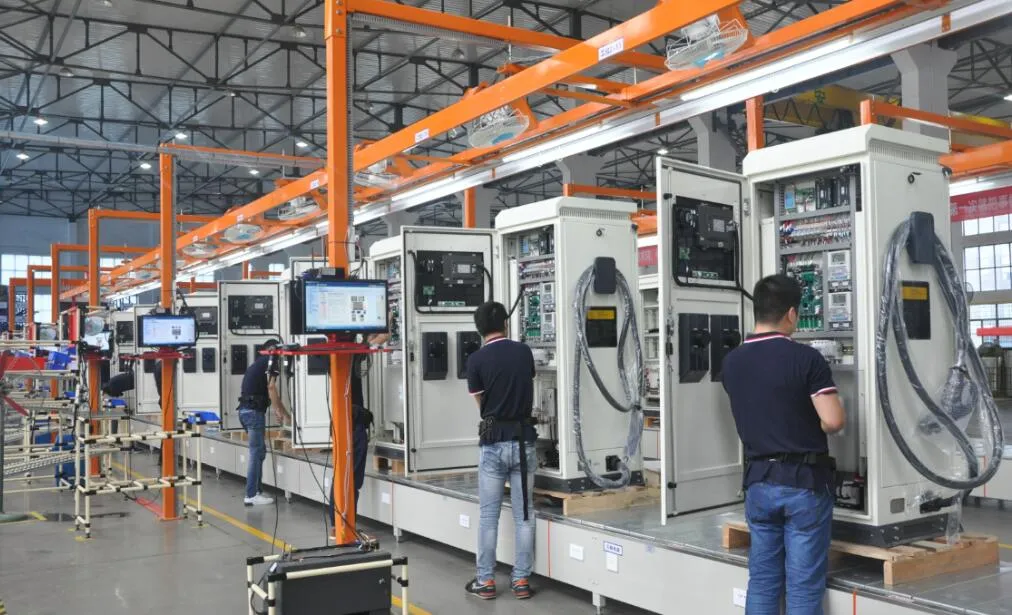

Our facility features an advanced automatic assembly production line. Debugging and aging processes are operated with automation equipment, achieving data self-collection and diagnosis. One charging pile can be completed within 35 minutes.
