Smart Parking Guidance System and Smart Parking Management System Solution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

JTNPLEDN512

Pixel Pitch

3.91mm

Pixel Configuration

1R,1G,1B

Pixel Density

27,777 dots / m²

Scanning Mode

1/8 Scan

Display Type

LED Video Display

Application

Parking Lot

IP Rating

IP43

Working Voltage

AC220V

Material

High-Grade Profile and Perspex Panel

Communication Method

RS485@9600BPS

Dimensions

86.3*38*5cm

Product Description

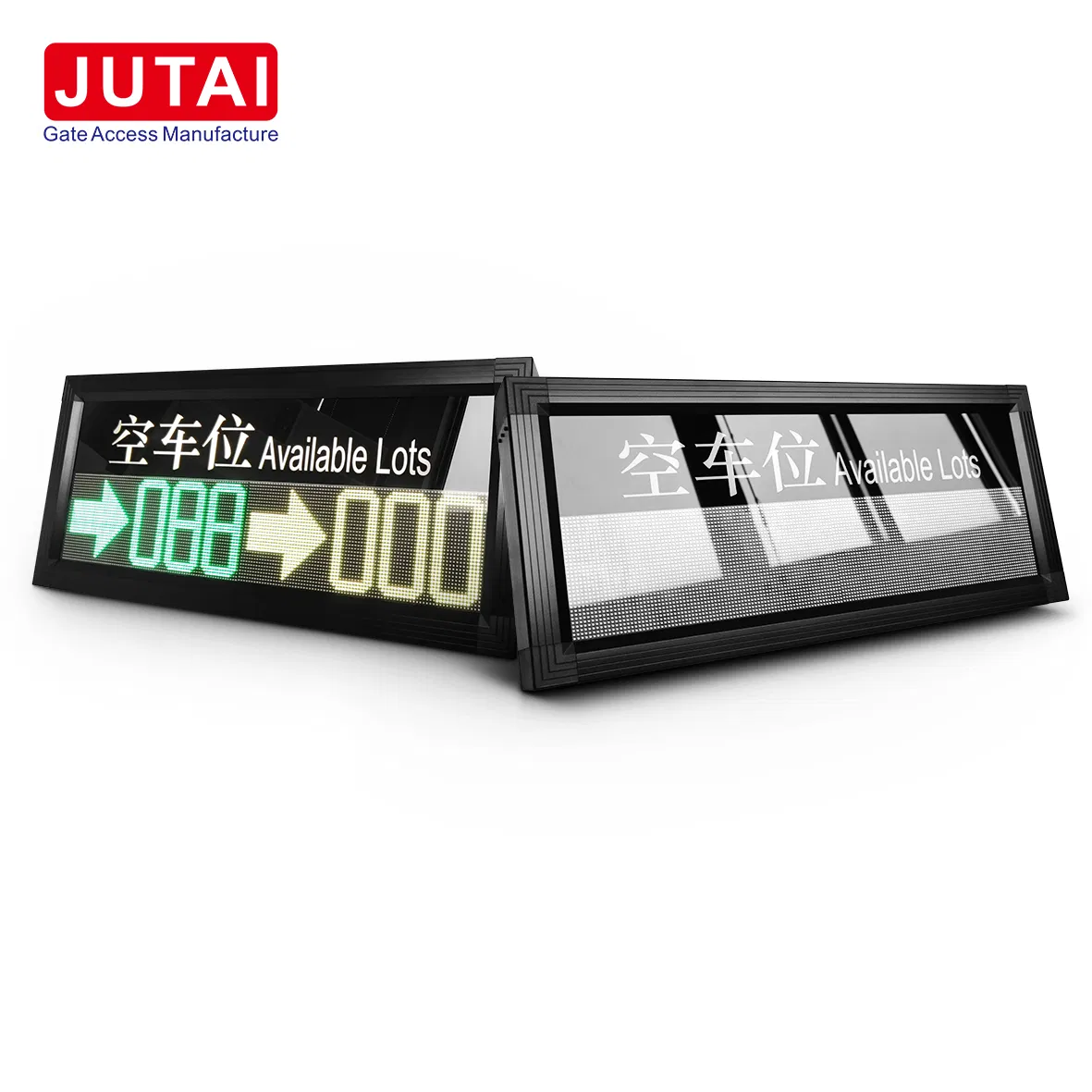

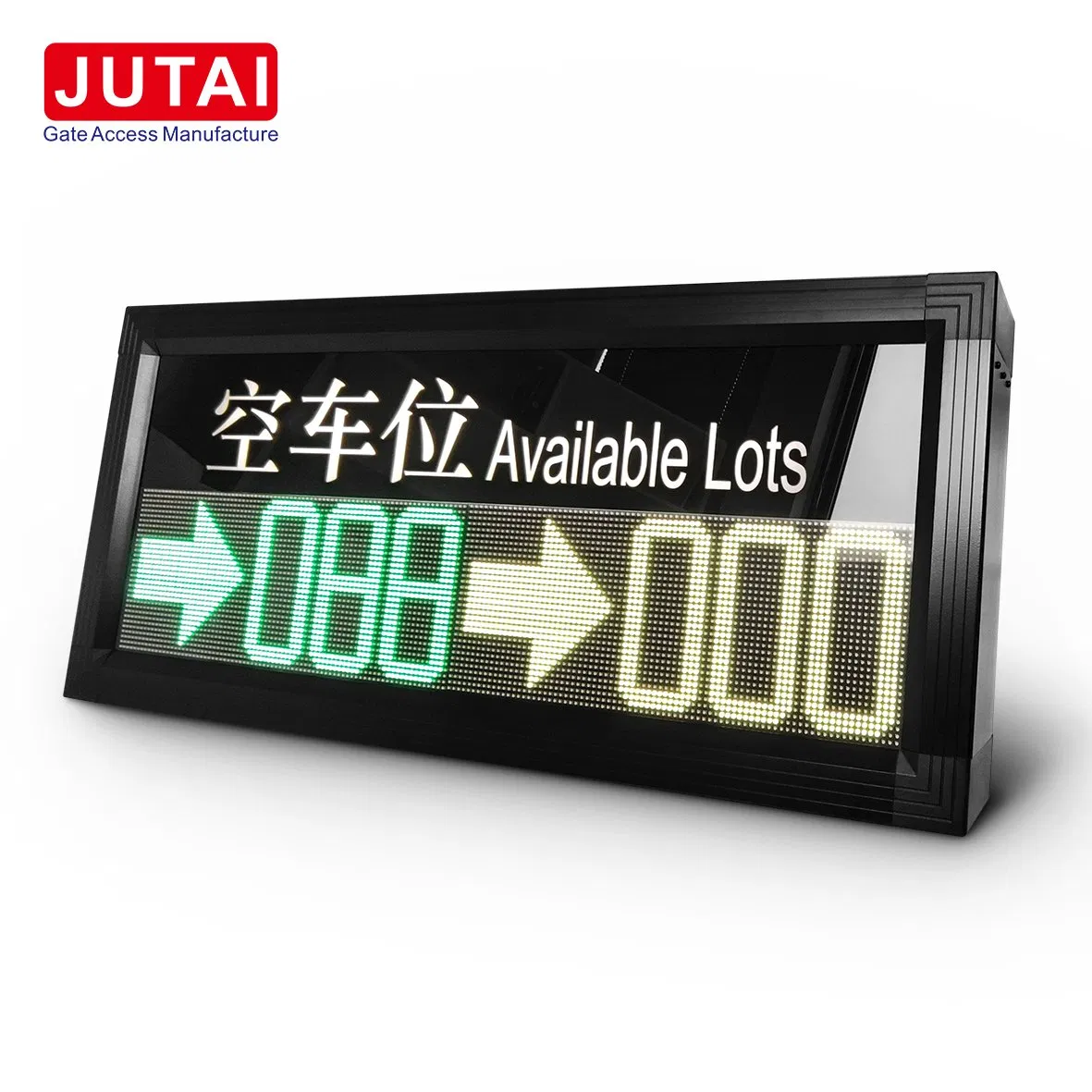

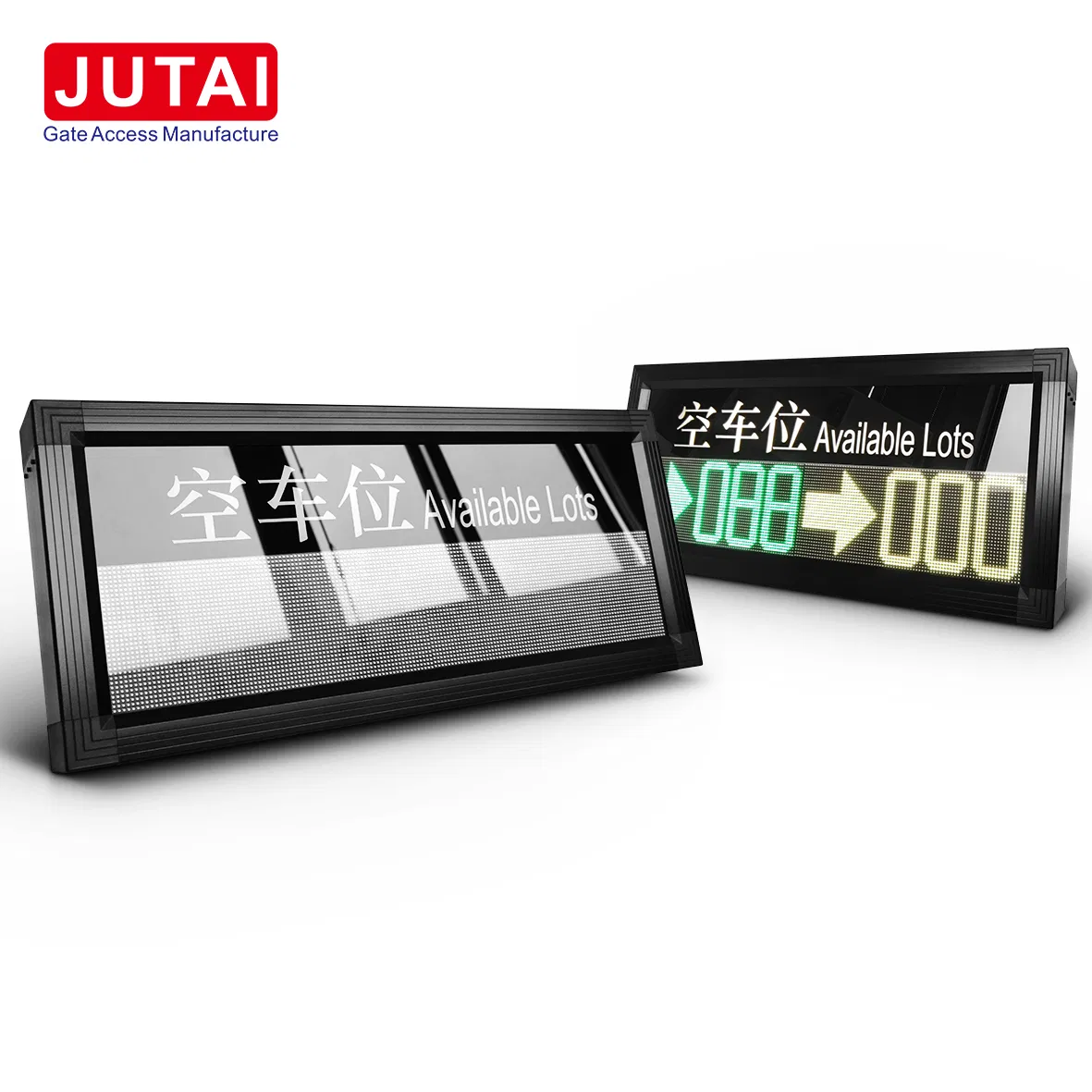

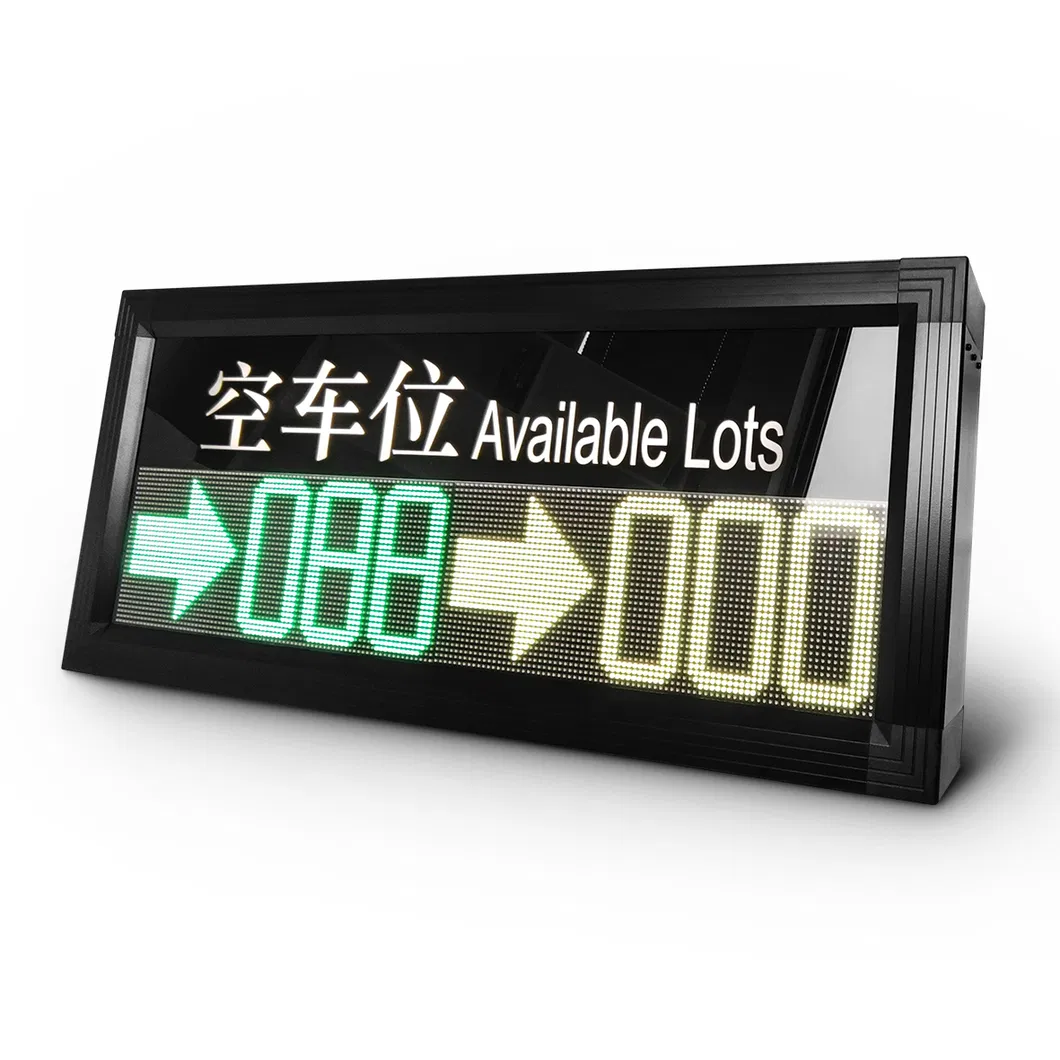

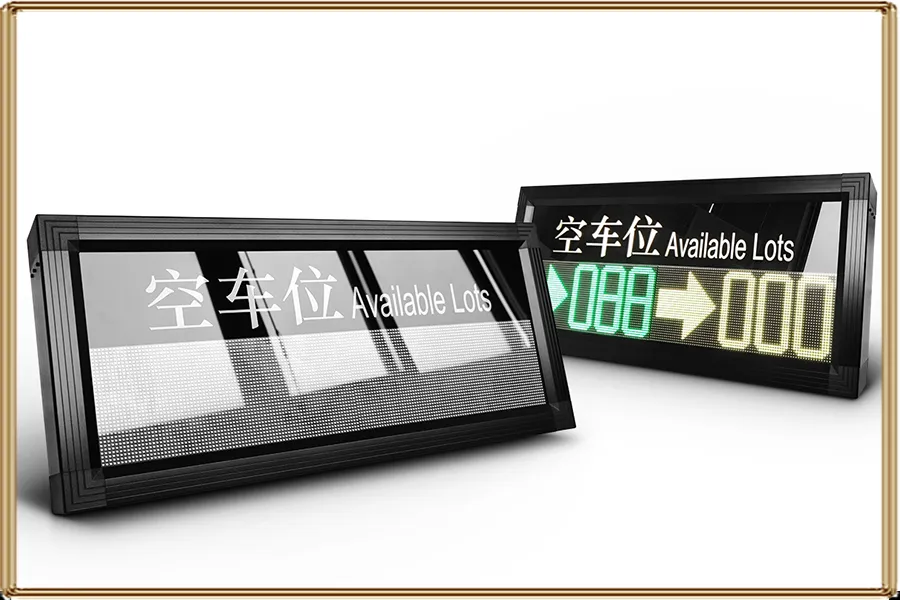

Smart Parking Guidance System

The indoor guidance screen is an essential component of the Smart Parking guidance system and management solution. It is designed to enhance the parking experience for car owners by providing clear, real-time navigation.

Featuring high-brightness LED modules and robust driving units, this screen is strategically installed at key forks in parking lots. It receives real-time data from the centralized controller to display the number of available parking spaces in specific zones.

Key Features

High-brightness LED modules for superior visibility in indoor environments
Real-time dynamic display of empty parking space counts
Intuitive visuals including numbers and directional arrows for fast navigation
Seamless integration with centralized parking control systems
Optimized traffic flow to maximize parking space utilization
Dust-proof shell design for long-term durability
Comprehensive electronic protection: short-circuit, over-voltage, and overload protection

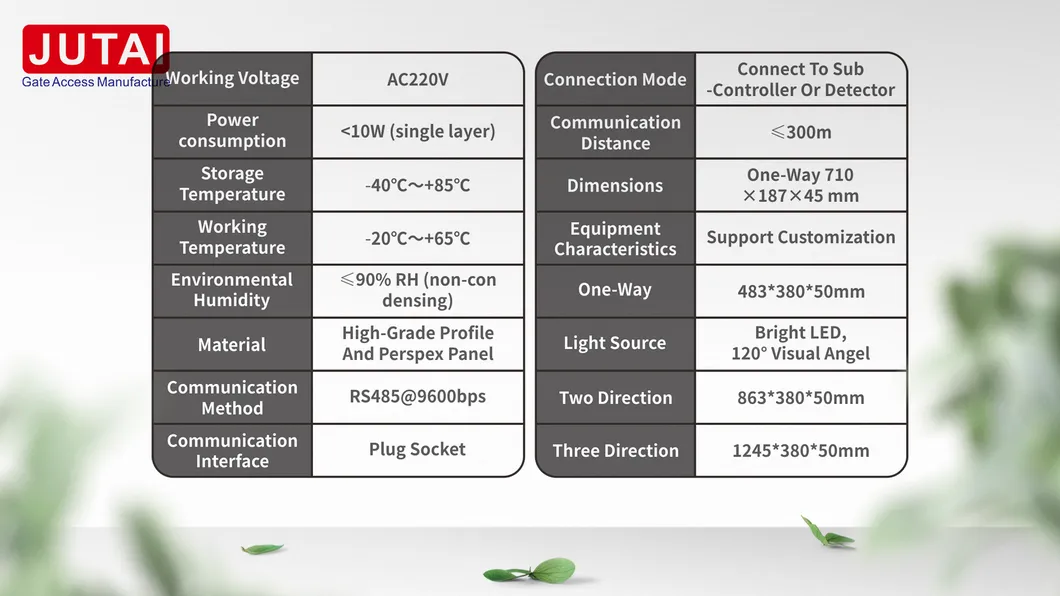

Technical Specifications

Display Model	1 row / 2 rows / 3 rows
Application	Parking Guidance System
Software	Supporting Management Software
Color Type	Full Color
Display Function	Image & Text Display

Advanced Technology & Design

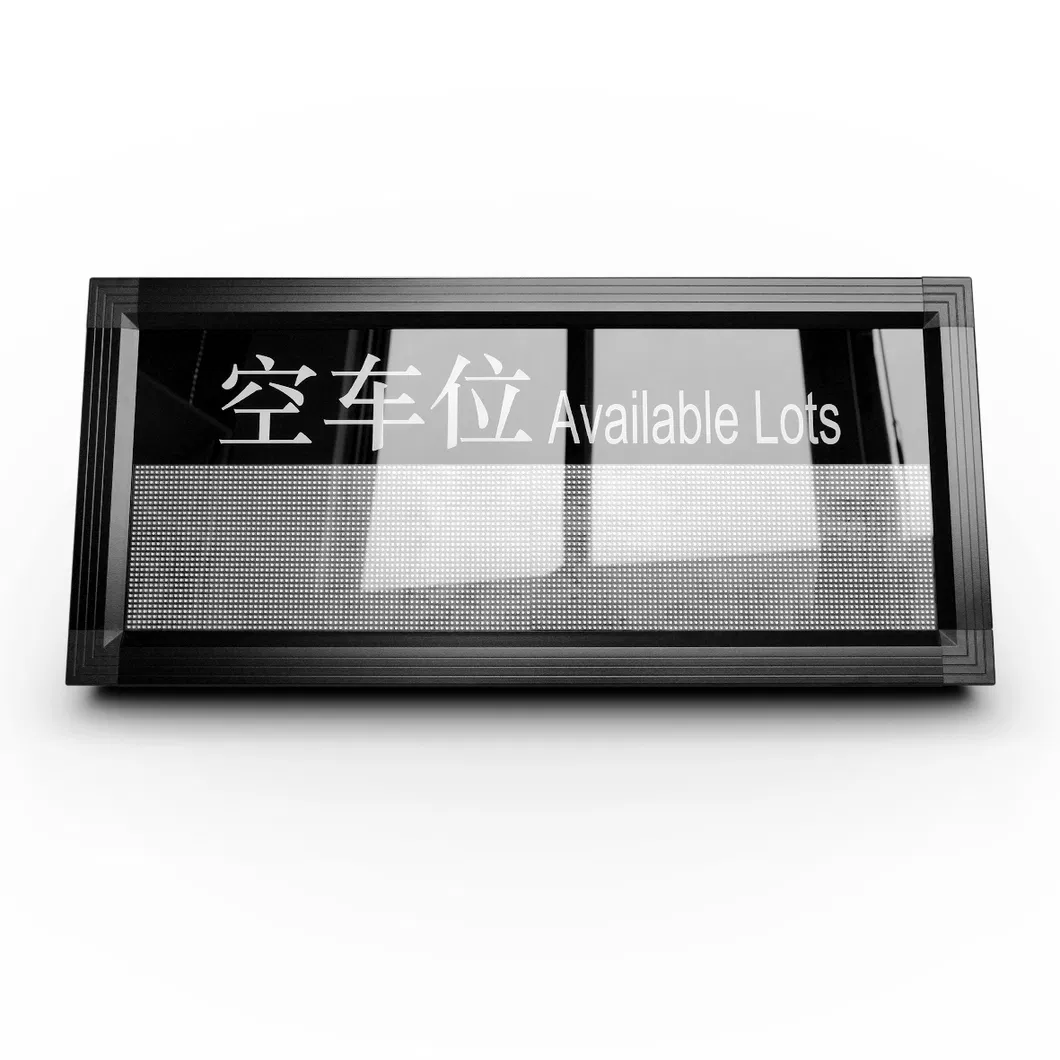

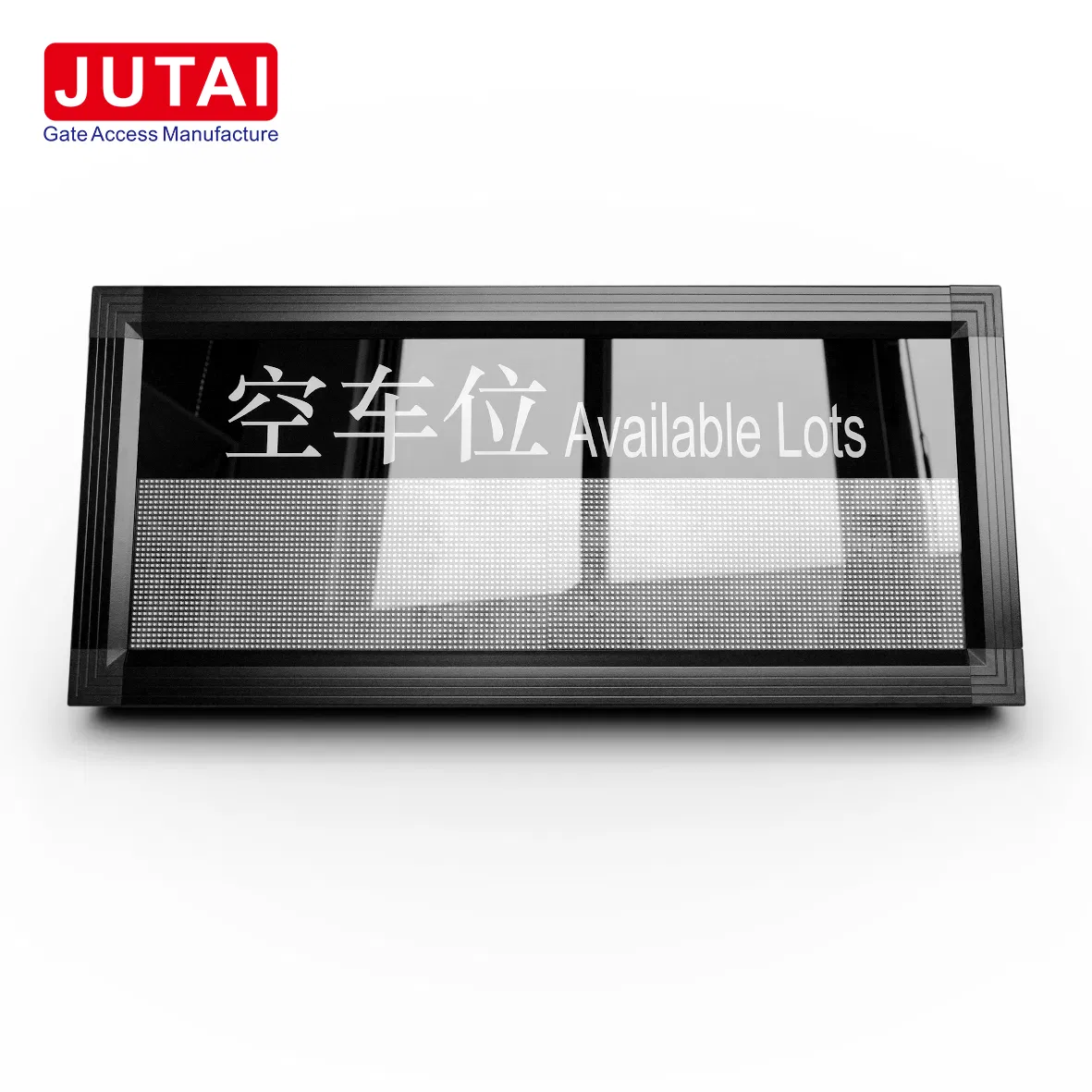

The system features a sleek and modern design with a perspex panel and profile shell, offering a professional appearance that fits any commercial or residential parking facility. With a pixel pitch of 3.91mm, it ensures vibrant and clear communication of information.

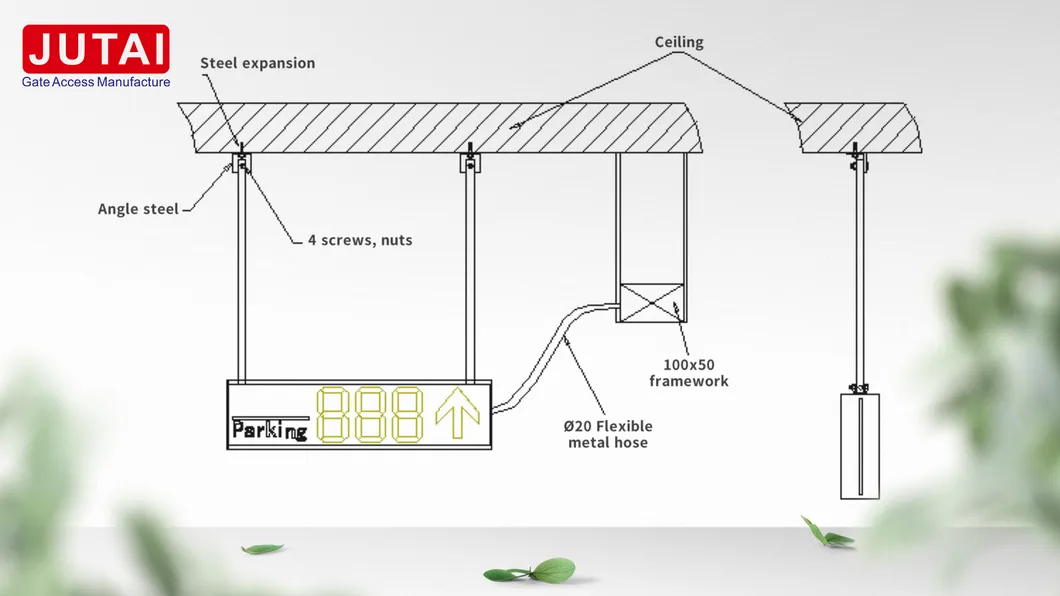

Installation Guidelines

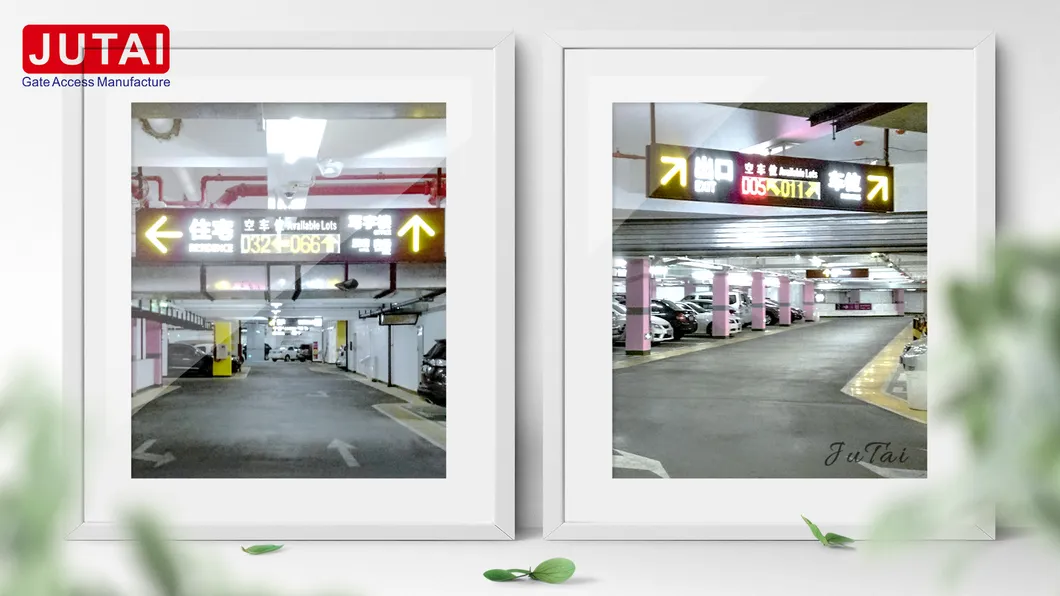

When installing one-way, two-way, or three-way screens at intersections, ensure the environment is clear of obstructions. Proper placement optimizes the visibility for drivers and enhances the efficiency of the vehicle counting and access control systems.

System Capabilities

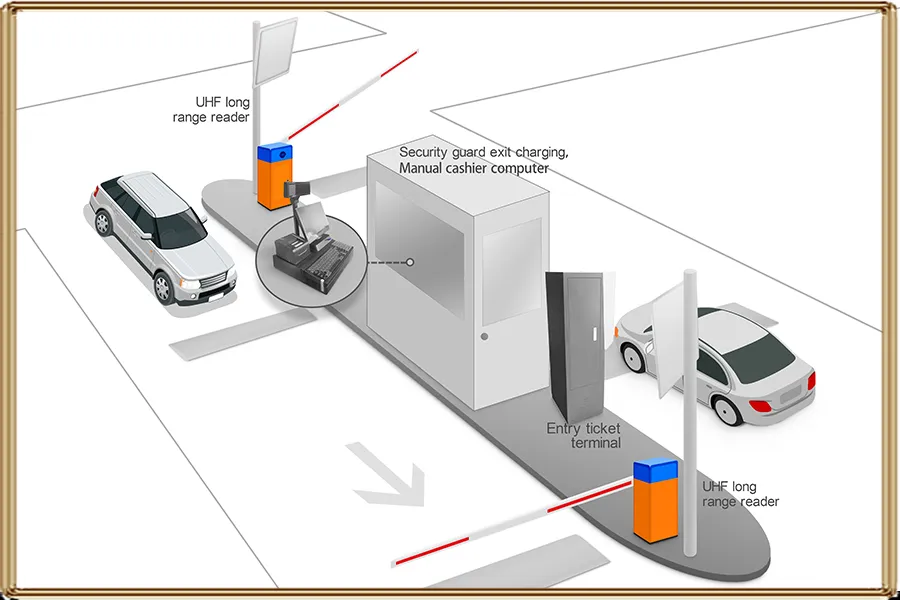

Our comprehensive solutions include ultrasonic sensors, parking barriers, and advanced management software. This allows for total control over parking facility operations, from vehicle entry to space localization.

Frequently Asked Questions

Q1: What is the pixel pitch of the LED guidance screen?

A1: The screen features a fine pixel pitch of 3.91mm, providing high-resolution text and image displays for clear visibility.

Q2: How does the screen receive data for available spaces?

A2: The screen connects to a centralized controller or detector via RS485 communication, receiving real-time updates on parking availability.

Q3: Is the display visible in bright indoor lighting?

A3: Yes, it utilizes high-brightness LED modules and high-intensity lamp beads to ensure long visual distance and wide viewing angles even in well-lit areas.

Q4: What kind of environmental protection does the unit offer?

A4: The unit features a dust-proof shell and an IP43 rating, making it ideal for indoor parking environments. It also includes built-in short-circuit and overload protection.

Q5: Can the display be customized?

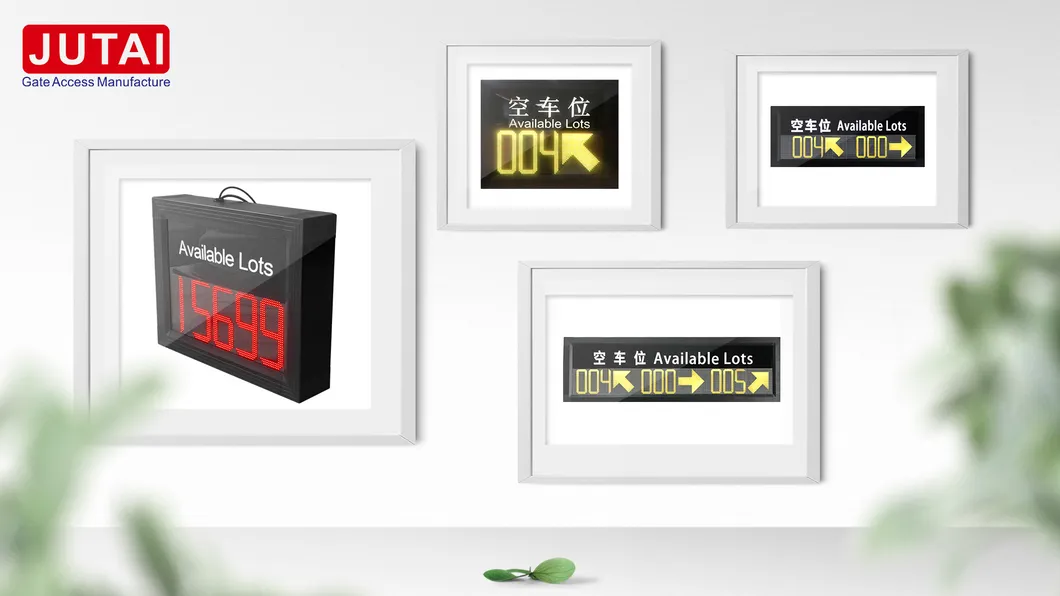

A5: Yes, the equipment supports customization for different row configurations (1, 2, or 3 rows) and specific display requirements.

Q6: What is the communication distance supported by the system?

A6: The system supports a communication distance of up to 300 meters between the display and the sub-controller or detector.
