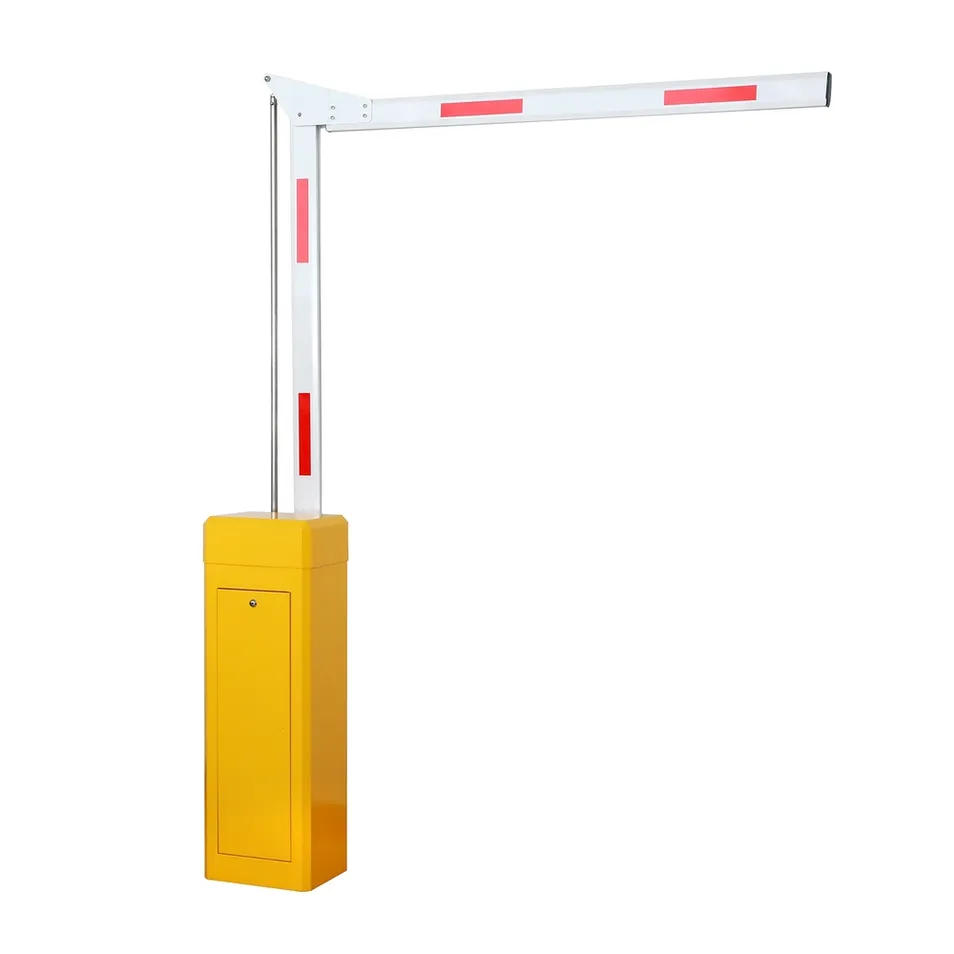

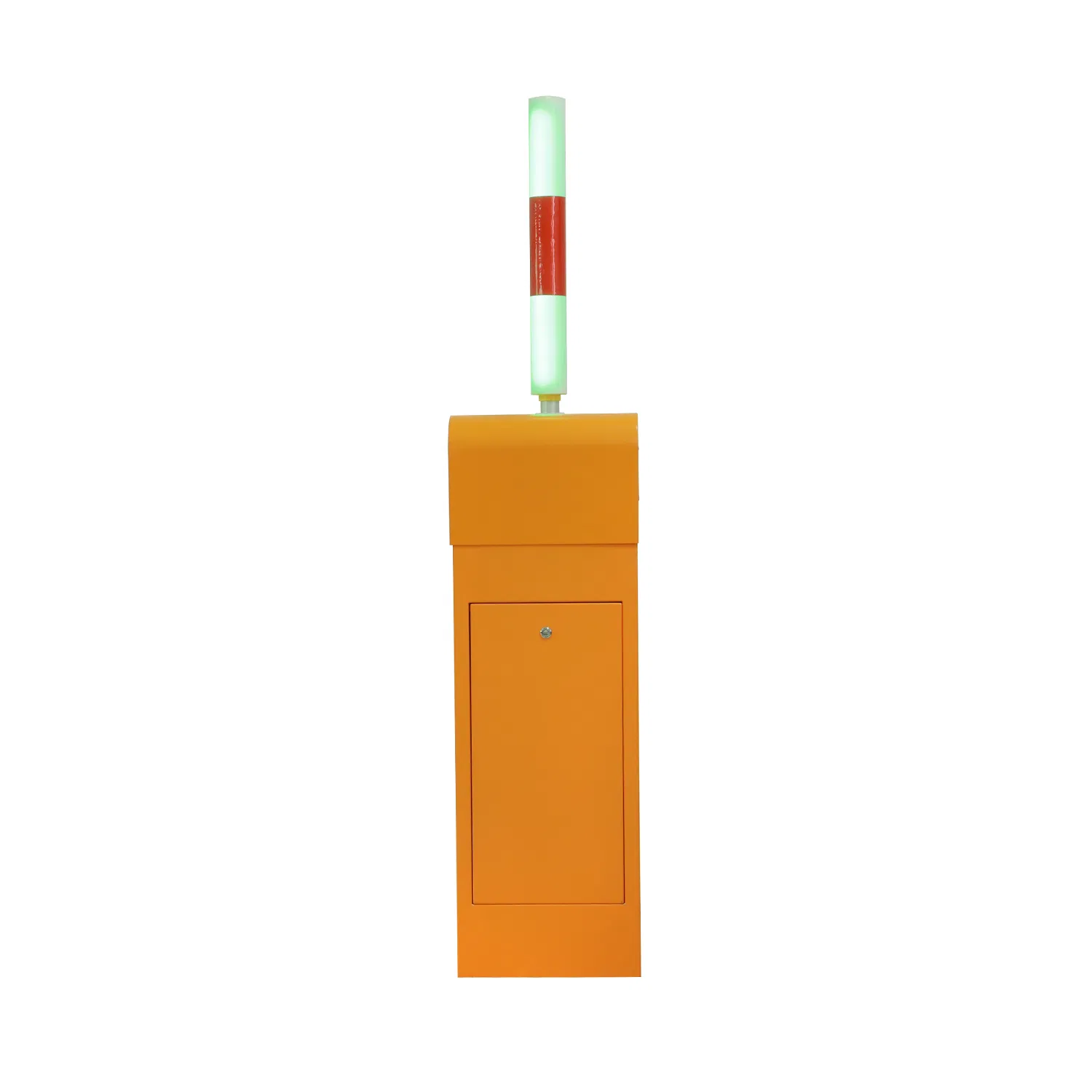

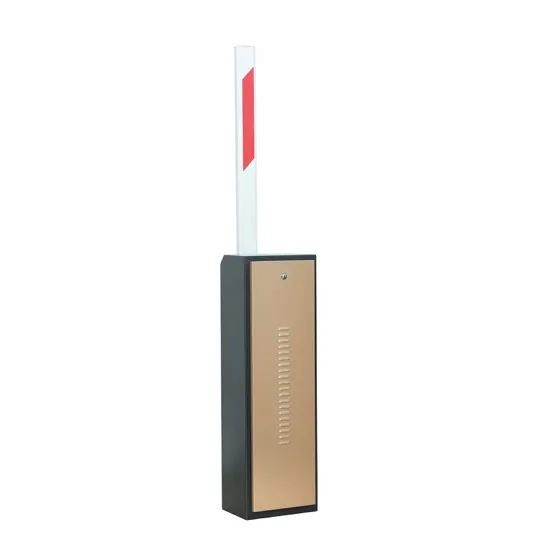

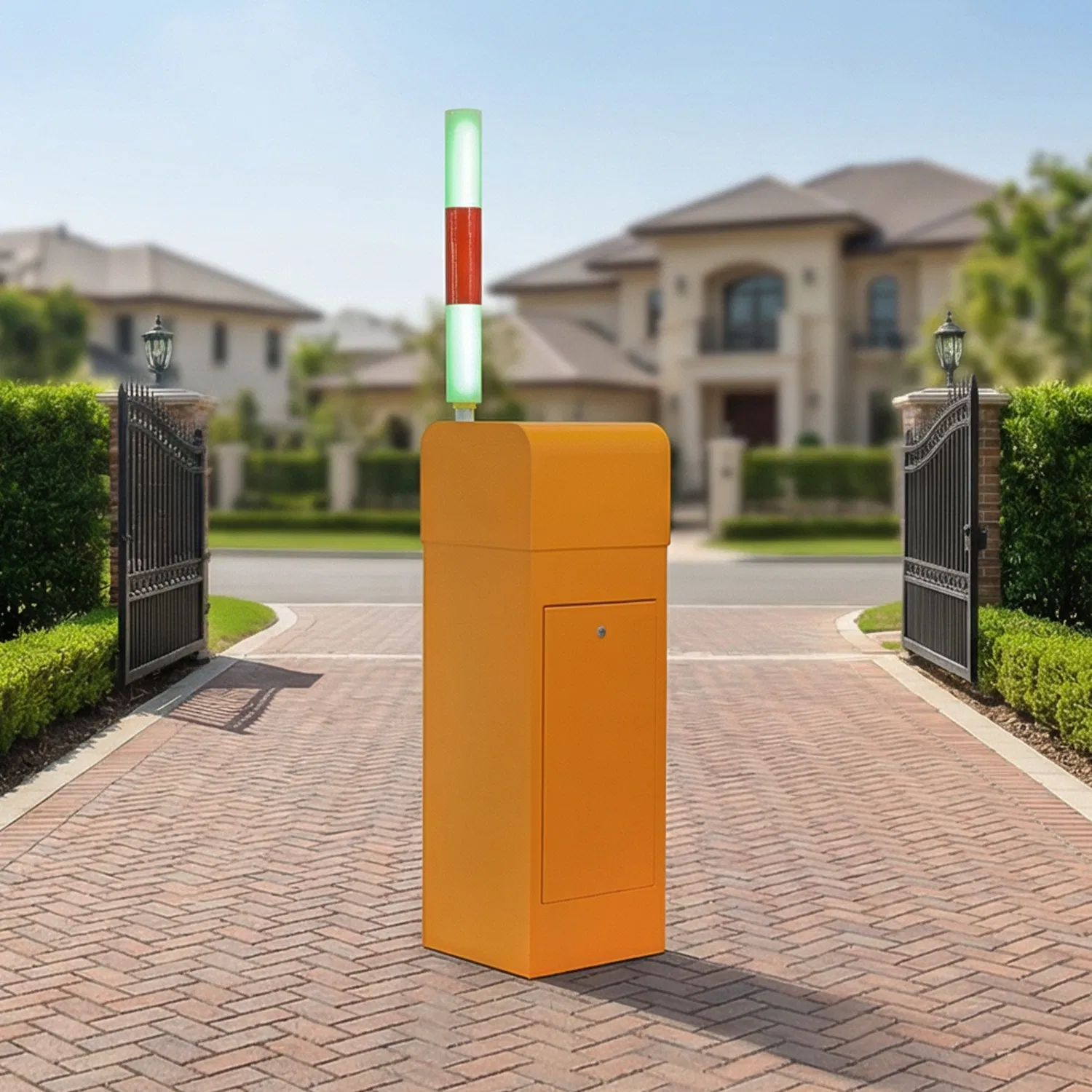

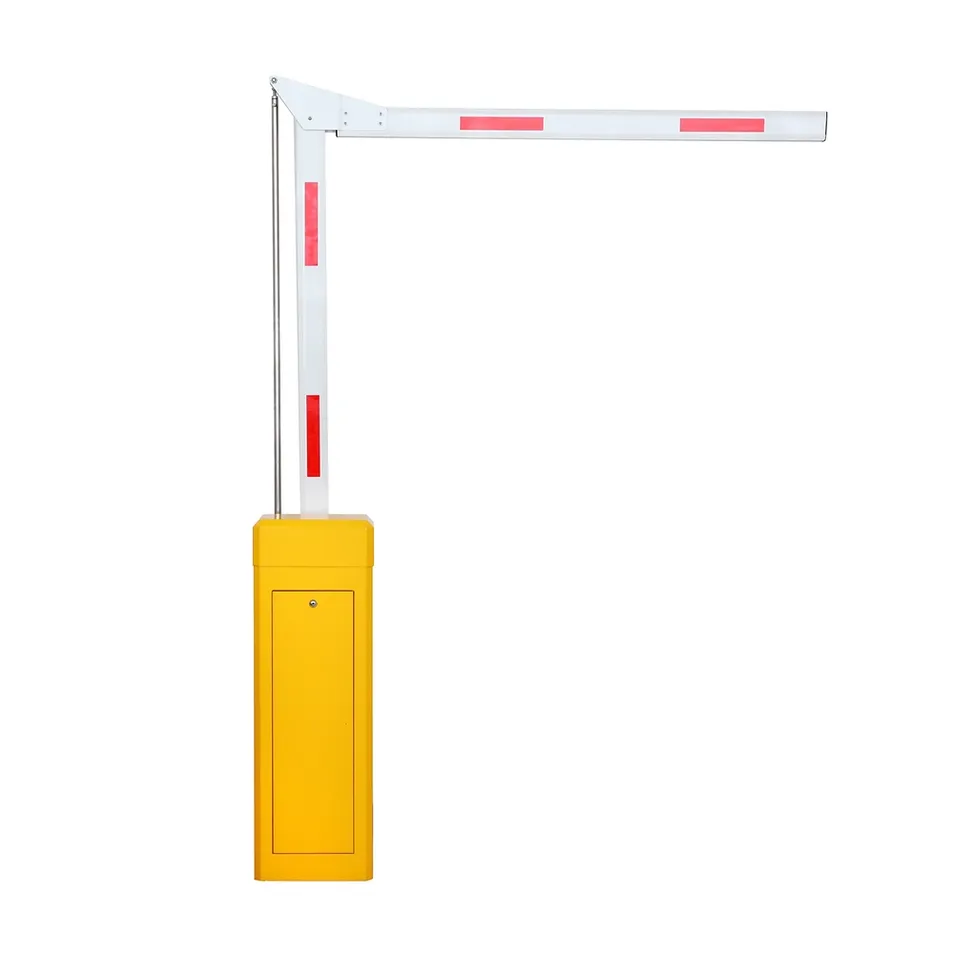

Smart Access Control System: DC Brushless Barrier Gate Solution

1 / 5

Smart Access Control System: DC Brushless Barrier Gate Solution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview: DC Brushless Barrier Gate

Experience unmatched reliability with our advanced DC brushless barrier gate, the top solution for efficient, secure vehicle access. Featuring a state-of-the-art brushless DC motor, this gate offers a longer lifespan, reduced maintenance, and quieter operation than traditional AC motor gates.

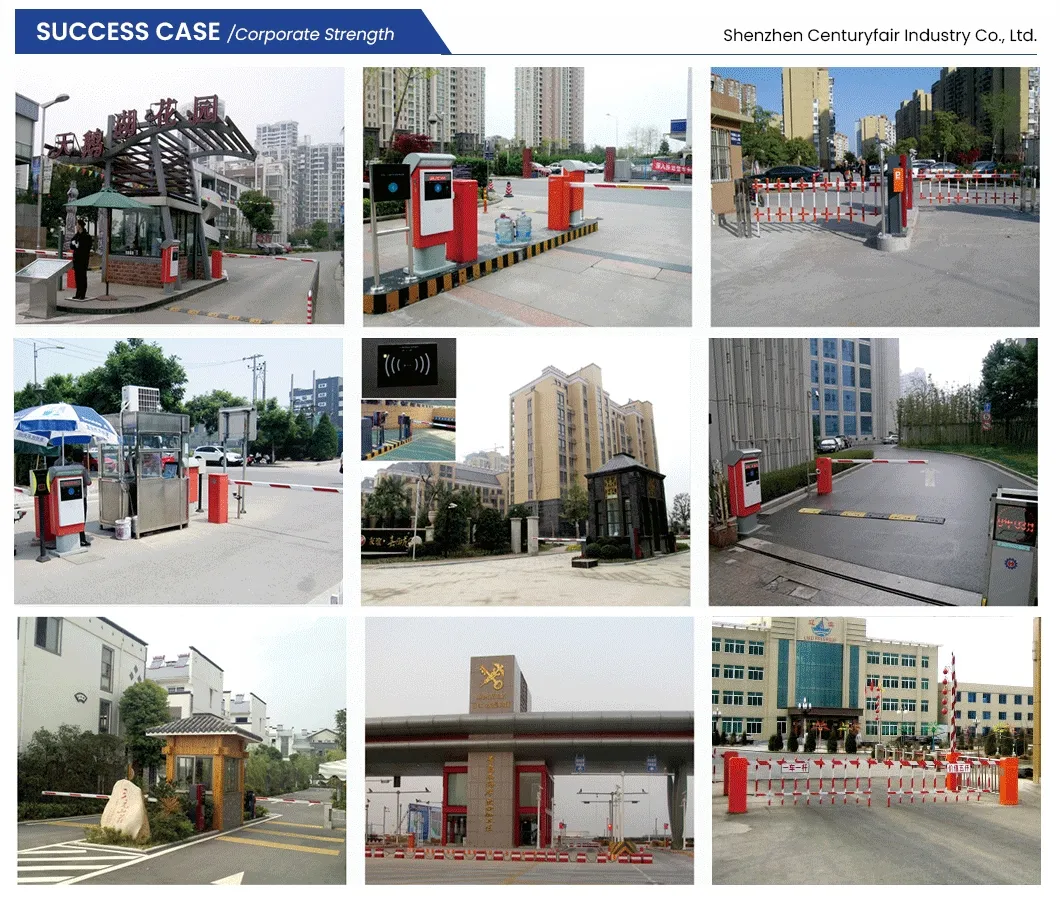

Robust design ideal for high-traffic areas like parking lots, communities, toll booths, and commercial properties, ensuring 24/7 smooth performance.

Key Features

Brushless DC Motor

High-torque motor delivers smooth boom movement and eliminates brush wear for long-term reliability (5 Million Cycles).

Adjustable Speed Control

Digital motor driver allows speed adjustments (1.5s - 5s) for site-specific safety or traffic optimization.

Extreme Climate Ready

Engineered for flawless operation in various temperatures ranging from -25°C to +55°C.

Obstacle Detection

Multiple detection zones offer adjustable sensitivity, ensuring safety and preventing environmental false triggers.

Technical Specifications

Parameter	Specification
Model	DC Brushless Barrier Gate
Rod Length	≤ 6m
Working Voltage	DC 24V
Output Power	120W
Rated Current	5A
Operating Time	1.5s - 5s
Service Life	≥ 5 Million Cycles
Insulation Class	Class F
Temperature Range	-25°C to +55°C
Humidity	≤ 90%
Altitude	≤ 1000m
Remote Control Distance	≤ 50m

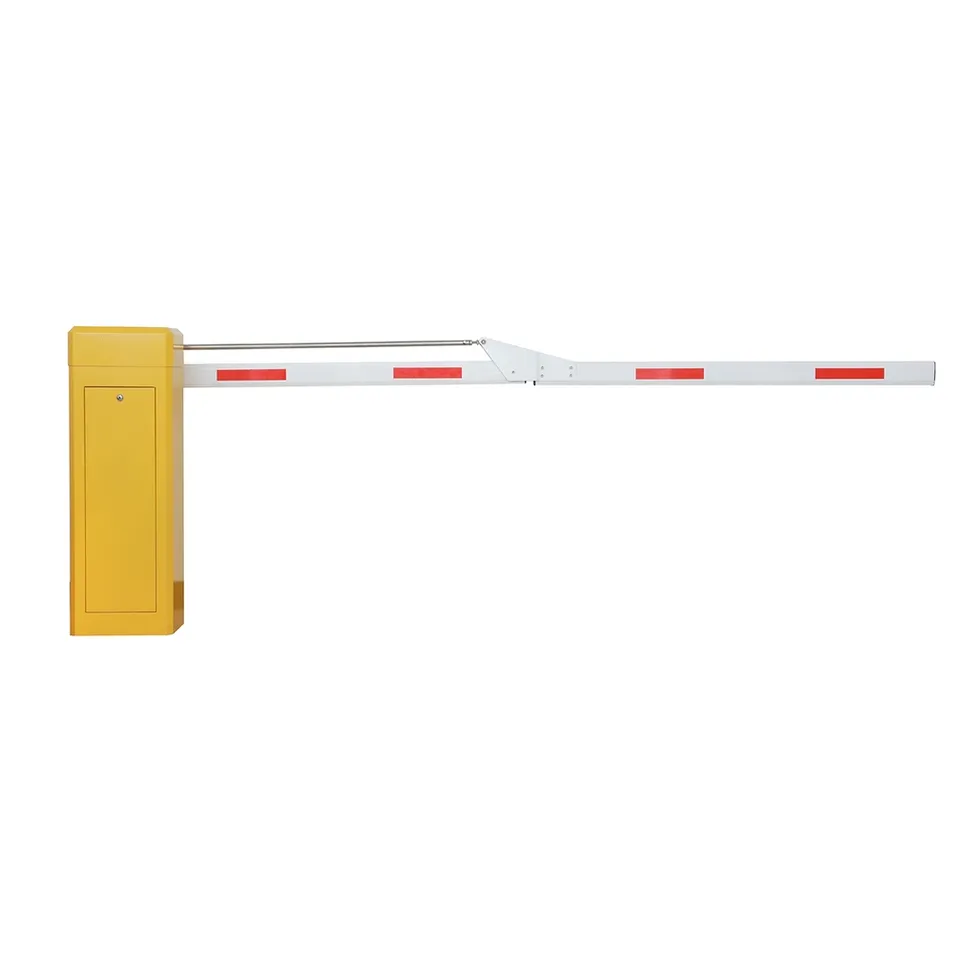

Detailed Photos & Installation

Frequently Asked Questions

What are the main advantages of a DC brushless motor?

DC brushless motors eliminate carbon brush wear, providing a significantly longer service life (over 5 million cycles), lower heat generation, and much quieter operation compared to traditional AC motors.

Can the boom opening speed be adjusted?

Yes, the digital controller allows for adjustable operating times between 1.5 seconds and 5 seconds, making it suitable for both fast-access toll lanes and standard parking entrances.

How does the obstacle detection feature work?

The system features multiple adjustable detection zones. When the boom encounters an obstruction while closing, the motor will automatically detect the resistance and reverse the direction to prevent vehicle damage or injury.

Is this barrier gate suitable for outdoor use in extreme weather?

Absolutely. It is designed to operate reliably within a temperature range of -25°C to +55°C and up to 90% humidity, making it ideal for most global climates.

What is the maintenance requirement for this model?

Due to the modular layout and quick-release panels, maintenance is nearly tool-free. The brushless motor itself requires no internal maintenance unlike brushed alternatives.

What is the maximum boom length supported?

This specific model supports a rod length of up to 6 meters, providing flexible coverage for various entrance widths.
